Wio Terminal 發展板

貨號：MCO0172

NT$1,460

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

了解更多

送貨及付款方式

顧客評價

產品特色

具有ARM Cortex-M4F內核的Microchip ATSAMD51P19以120MHz執行

配備Realtek RTL8720DN，雙頻2.4Ghz / 5Ghz Wi-Fi

高度封裝的設計：2.4英寸液晶顯示屏，IMU和更實用的附件，安裝在帶有內置磁鐵和安裝孔的緊湊型外殼中

Raspberry Pi 40接腳兼容GPIO

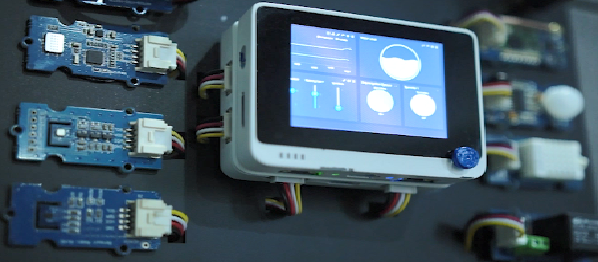

兼容300多種即插即用的Grove模塊，可通過IoT探索

USB OTG支援

支援Arduino，CircuitPython，Micropython，ArduPy，AT，Visual Studio Code

TELEC認證

【產品規格】

Main Chip	Manufacturer Part Number	ATSAMD51P19
	Core Processor	ARM® Cortex®-M4F
	Maximum Speed	200MHz
	External Flash	4MBytes
	Operating Temperature	-40°C ~ 85°C (TA)
LCD Screen	Resolution	320x240
	Display Size	2.4inch
	Drive IC	ILI9341
Wireless Connectivity	Manufacturer Part Number	RTL8720DN
	KM4 CPU	ARM® Cortex®-M4F @ 200MHz
	KM0 CPU	ARM® Cortex®-M0
	Wi-Fi	802.11 a/b/g/n 1x1, 2.4GHz & 5GHz
	Bluetooth	Support BLE5.0
Built-in Modules	Accelerometer	LIS3DHTR
	Microphone	1.0V-10V -42dB
	Speaker	≥78dB @10cm 4000Hz
	Light Senso	400-1050nm
	Infrared Emitter	940nm

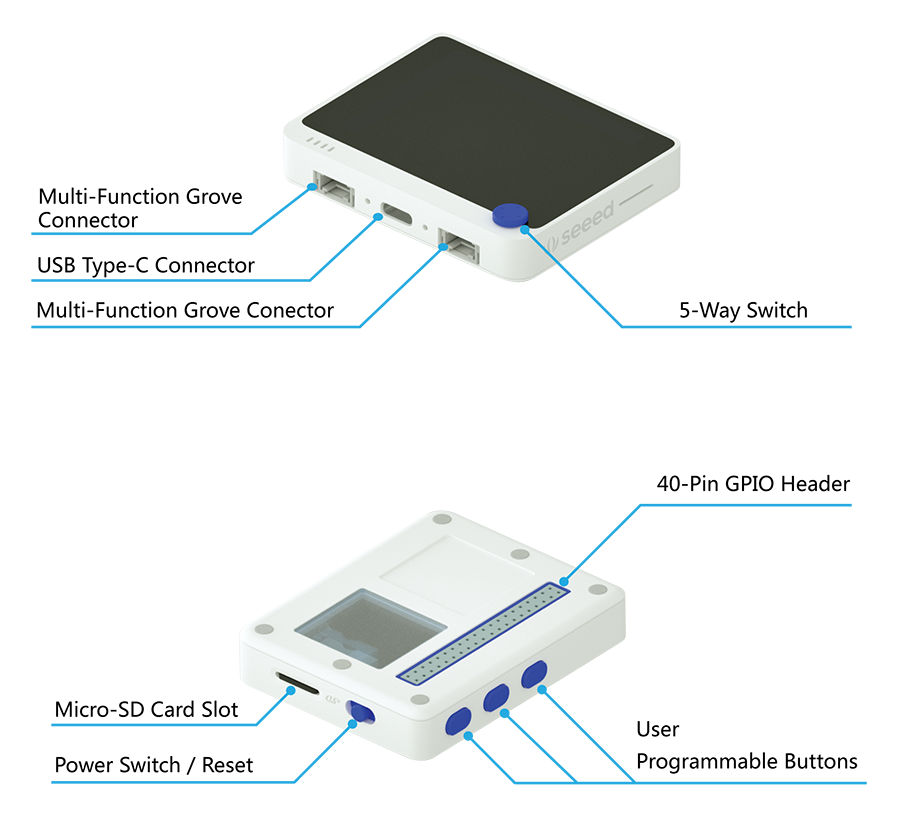

Interface	MicroSD Card Slot	Maximum 16GB

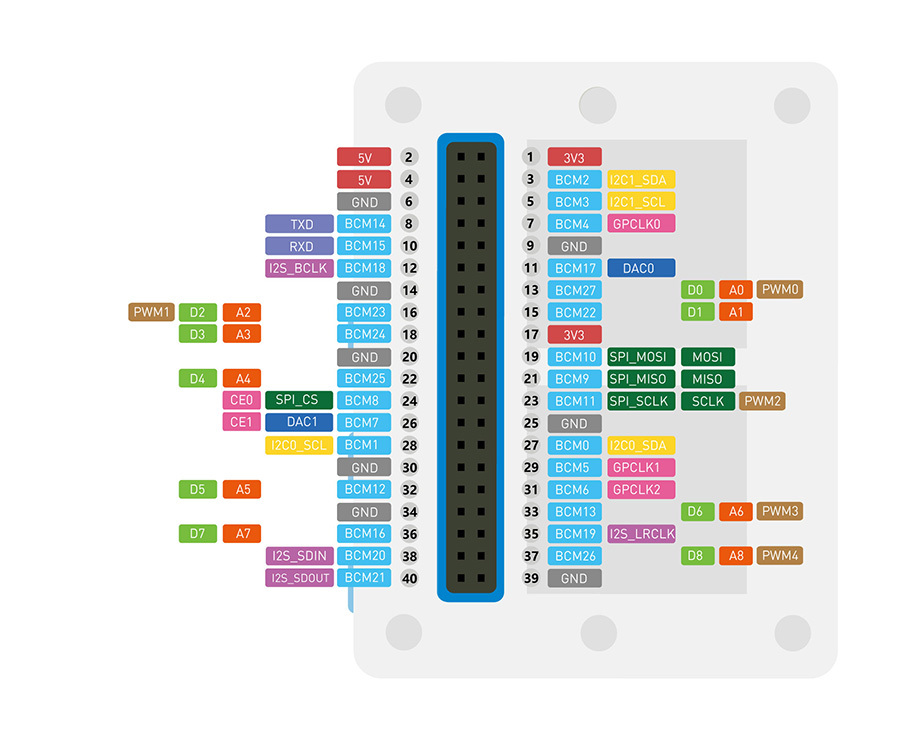

	GPIO	40-PIN (Raspberry Pi Compatible)
	Grove	2 (Multifunction)
	FPC	20-Pins
	USB Type-C	Power & USB-OTG
Operation Interface	5-Way Switch
	Power/Reset Switch
	User-defined button *3
Enclosure	Dimension	72mm57mm12mm
Enclosure	Materials	ABS+PC
