TF02-i LiDAR 光達測距模組（40公尺 | 工業級 | IP65）

TF02-i LiDAR 光達測距模組（40公尺 | 工業級 | IP65）

貨號：SSL0060

TF02-i LiDAR是一款工業級中程ToF單點測距固態感測器。它的最大檢測範圍可達40m，幀速率可調，最大1KHz。

這款TF02-i固態雷射雷達兼容RS485介面，可廣泛應用於無人機固定高度、智慧交通、智慧停車、智慧農業等工業領域。

NT$3,579
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量
立即登入/註冊
加入追蹤清單
立即登入/註冊
一次最大商品購買數量限制為 99999
該數量不適用，請填入有效的數量。
售完

商品存貨不足，未能加入購物車

您所填寫的商品數量超過庫存

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買，請聯絡我們。
立即登入/註冊
加入追蹤清單
立即登入/註冊
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

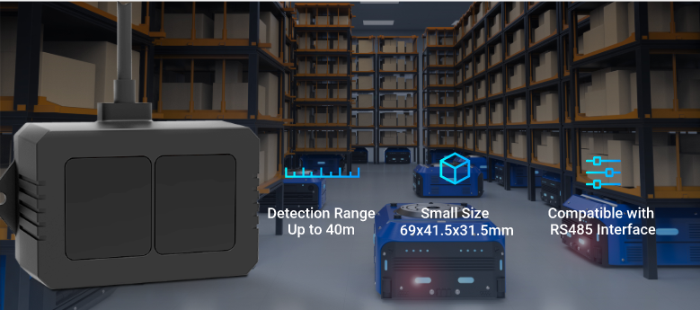

TF02-i LiDAR is an industrial-grade medium-range ToF single-point ranging solid state sensor.
Its maximum detection range can reach up to 40m and it has an adjustable frame rate with a maximum of 1KHz.
This TF02-i solid state lidar is compatible with RS485 interface, it can be widely used in the Industrial fields of UAV height fixing,
intelligent transportation, intelligent parking, intelligent agriculture, etc.

High Performance

  • Maximum detection range is up to 40m.
  • Blind spot as low as 10cm.
  • Scanning frequency up to 1000Hz.
  • Working under 100K lux light without interference


More Suitable for Industrial Application

  • Compatible with RS485 interface.
  • Has a PC/ABS/PMMA enclosure with IP65 water and dust resistance.
  • With reverse protection to protect the internal circuit.
  • Supports a wide range of input voltages (7-30V) and reduce the damage caused by voltage fluctuations.

Easy to use

The TF02-i TOF LiDAR can be used on the Arduino UNOR3 through the TTL to RS485 Shield, and it can also be used on the Raspberry Pi through the USB to RS485 module. Those two ways provided by DFRobot can make TF02-i LiDAR simpler to be used.

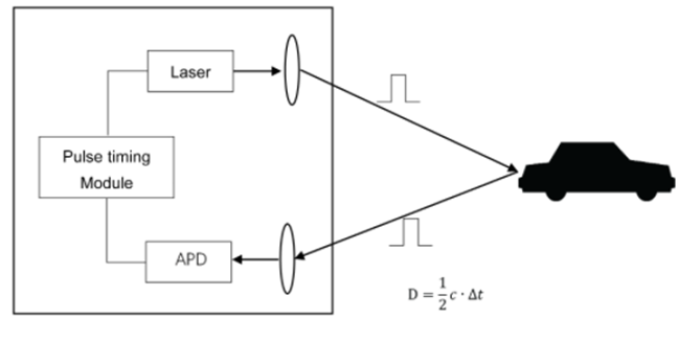

How does TF02-i LIDAR work?

TF02-i is a single point LiDAR, which is based on Pulse Time of Flight (PTOF).

It adopts an incoherent energy receiving mode, and the detection is mainly based on Pulse counting.

TF02-i emits a narrow pulse laser, which is collimated by the transmitting lens to form a collimated light,

which enters the receiving system after being reflected by the measured target and is focused on the APD detector by the receiving lens.

The time between the transmitted signal and the received signal is calculated through the circuit amplification and filtering,

and the distance between TF02-i and the measured target can be calculated through the speed of light.


【產品特色】
  • Wide range of input voltages (7-30V) with reverse protection
  • RS485 interface communication
  • Adjustable frame rate with a maximum of 1KHz
  • Medium range detection (0.1 to 40m)
  • IP65 protection for industrial application
  • Compatible with Arduino UNO R3 and Raspberry Pi

【使用方式】
  • Detection of vehicle and pedestrian
  • Vehicle collision avoidance and safety warning systems
  • UAV assisted takeoff and landing
  • Altimeter
【產品規格】

Product Performance

Operating Range:

  •       0.1-40m@90% reflectivity
  •       0.1-13.5m@10% reflectivity
  •       0.1-40m@90% reflectivity & 100Klux
  •       0.1-13.5m@10% reflectivity & 100Klux

  • Accuracy: ±5cm (0.1~5m), ±1% (5~40m)
  • Distance resolution: 1cm
  • Frame rate: 100Hz
  • Ambient light immunity: 100Klux
  • Operating temperature: -20~60℃
  • Repeatability: 1σ:＜2cm(0.1~35m@90% reflectivity)
  • Enclosure rating: IP65

Optical Parameters

  • Light source: VCSEL
  • Central wavelength: 850nm
  • Photobiological safety: Class1 (EN60825)
  • FOV (Field of view): 3°

Electrical Parameters

  • Supply voltage: 7~30V
  • Average current: ≤70mA@12V
  • Power consumption: ≤0.85W@12V
  • peak current: 100mA

Others

  • Communication interface: RS-485
  • Dimensions: 69mmx41.5mmx31.5mm(L*W*H)
  • Enclosure material: PC/ABS/PMMA
  • Storage tempe rature: -30~80℃
  • Weight: 60g (with cable)
  • Cable length: 70cm
