50：1微型減速馬達HPCB 6V帶擴展電機軸

Name: 50：1微型減速馬達HPCB 6V帶擴展電機軸
SKU: 61723246fe97db003883a4be
Price: 434.0 TWD
Availability: InStock

貨號：MOD0038

NT$434

NT$510

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

商品描述

了解更多

送貨及付款方式

顧客評價

【產品簡介】

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

【產品規格】

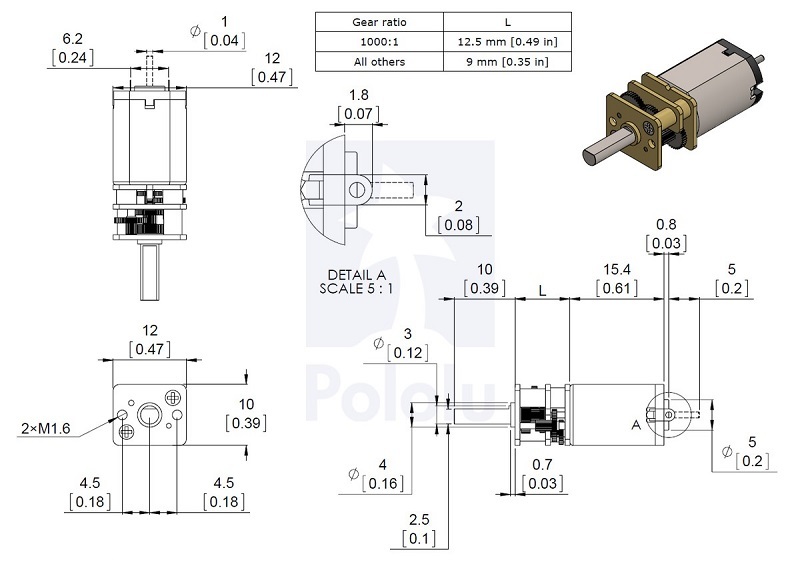

Dimensions

Size:	10 × 12 × 26 mm1
Weight:	9.5 g
Shaft diameter:	3 mm2

General specifications

Gear ratio:	51.45:1
No-load speed @ 6V:	650 rpm3
No-load current @ 6V:	0.15 A4
Stall current @ 6V:	1.5 A
Stall torque @ 6V:	0.74 kg·cm
Max output power @ 6V:	1.2 W
Extended motor shaft?:	Y
Long-life carbon brushes?:	Y
Motor type:	1.5A stall @ 6V (HPCB 6V - carbon brush)

Performance at maximum efficiency

Max efficiency @ 6V:	32 %
Speed at max efficiency:	490 rpm
Torque at max efficiency:	0.16 kg·cm
Current at max efficiency:	0.42 A
Output power at max efficiency:	0.80 W
