ST25R3911B NFC開發套件 (內含AT32F413RBT7控制器 支援多種NFC)

ST25R3911B NFC開發套件 (內含AT32F413RBT7控制器 支援多種NFC)

貨號:CSR0013


NT$840
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量
加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。
加入追蹤清單
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

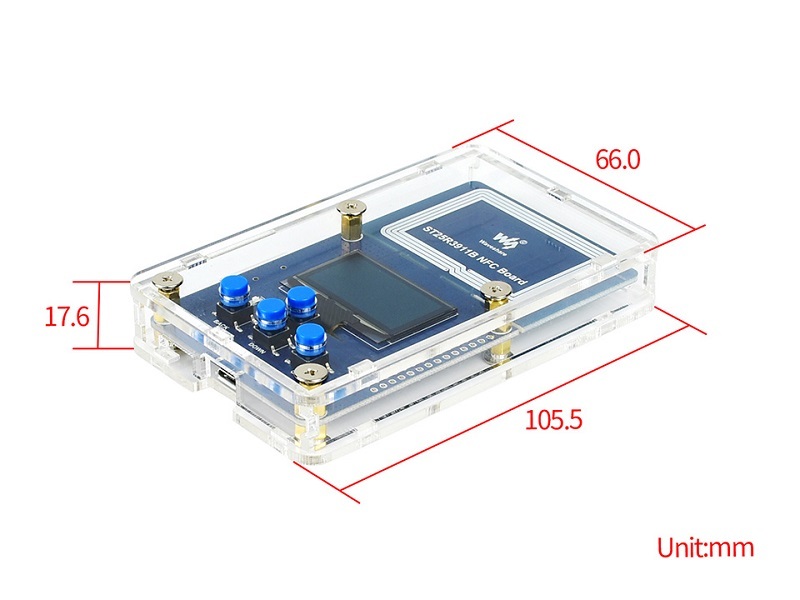

This is an NFC development kit based on ST25R3911B, with an AT32F413RBT7 controller, OLED display, user buttons, and common user interfaces. It is your ideal choice for learning and developing NFC applications.
Multiple NFC protocols are supported by the kit, with up to 1.4w output power, and a low-power capacitive wake-up function. It suits applications that require high RF performance, flexibility, and low power consumption, such as access control, ticketing, industry, medical treatment, consumption product, and so on.

【產品特色】

  • Multi protocols support: ISO18092, ISO14443A, ISO14443B , ISO15693, FeliCa™
  • Differential antenna design, output power up to 1.4W, longer sensing distance
  • Embedded low-power capacitive sensor, allows sensing and capacitive wakeup, detecting the nearby card without enabling the magnetic field of the reader
  • STM32F103RBT6 controller, easy for learning, evaluating, or direct integration, needs no other external controller
  • 1.3" OLED display, allows visual operation
  • Onboard SRAM, additional space to the inner RAM
  • Micro SD slot, supports external TF card for storing data to be transferred via NFC
  • 4x buttons, 2x user indicators, convenient for debugging
  • Onboard programming interface, UART debugging interface, breakout all the unused IO pins for connecting other user peripherals
  • Customized acrylic case, protective and dust-proof, better looking
  • Comes with development resources and manual

【產品規格】

  • NFC chip: ST25R3911B
  • Operating frequency: 13.56MHz
  • Output power: 1.4W (max)
  • Communication interface: SPI
  • Protocol support:
    • ISO18092 (NFCIP-1) active P2P
    • ISO14443A, ISO14443B, and FeliCa™
    • ISO15693
  • Other customized protocols (like MIFARE™ Classic)
  • Power supply voltage: 5V
  • Operating voltage: 3.3V


  • AT32F413RBT7
    • Core: ARM® 32-bit Cortex™-M4F
    • Operating Frequency: 200MHz
    • Operating Voltage: 2.0V-3.6V
    • Package: LQFP64
    • Memories: 128kB Flash, 32kB SRAM
    • Communication Interfaces: 2 x SPI, 5 x USART, 2 x I2C, 2 x CAN, 1 x USB, 1x SDIO
    • AD & DA Converters: 2 x AD (12-bit, shares 16 channels)

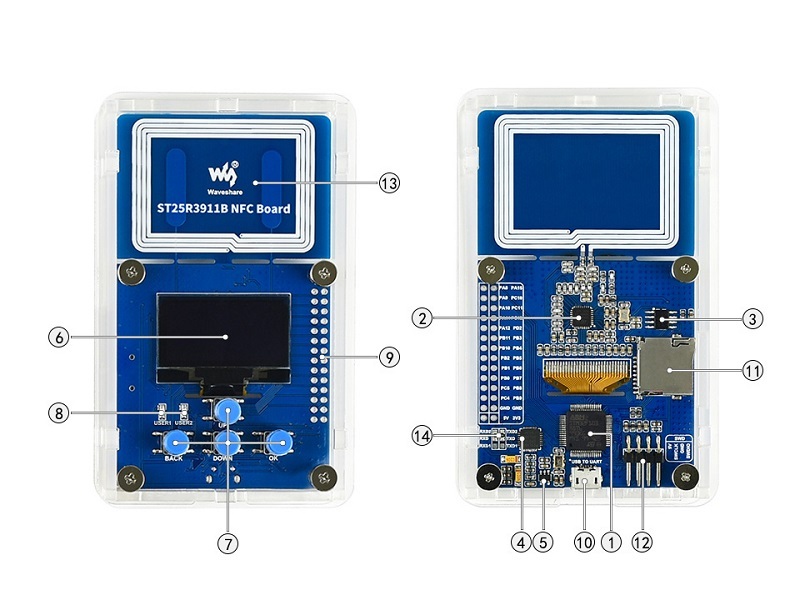

  • ST25R3911B: NFC chip, aka AS3911B
  • 23LC1024: SRAM, 1Mbit
  • CP2102: USB TO UART converter, for debugging
  • SPX3819: 3.3V voltage regulator
  • 1.3" OLED: blue display, 128×64 pixels, SH1106 driver
  • 4x user buttons:
  • 2x user indicators
  • MCU unused pins
  • USB TO UART port
  • Micro SD slot
  • SWD programming interface
  • NFC induction coil
  • UART pin configuration
  • RXD: connected to RXD2 by default, changeable to RXD1 via 0Ω resistor
  • TXD: connected to TXD2 by default, changeable to TXD1 via 0Ω resistor
