樹莓派 Raspberry Pi Zero 2 W 板

Little genius

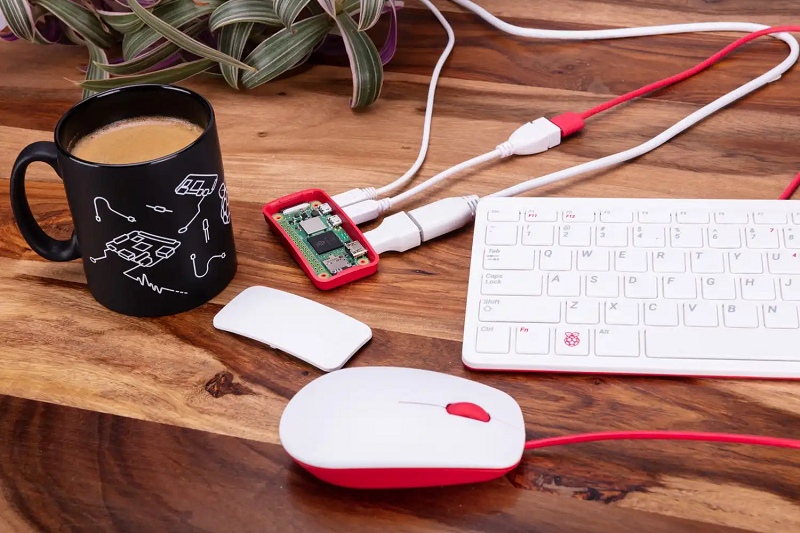

Raspberry Pi Zero 2 W is perfect for a range of smart home applications and other IoT projects. From security cameras to Bluetooth speakers, Zero 2 W has the tiny form factor and impressive power that make it an ideal computer for your projects.

Making connections

Like the original Raspberry Pi Zero, Raspberry Pi Zero 2 W features a mini HDMI port, a micro USB port, and a micro USB power port.

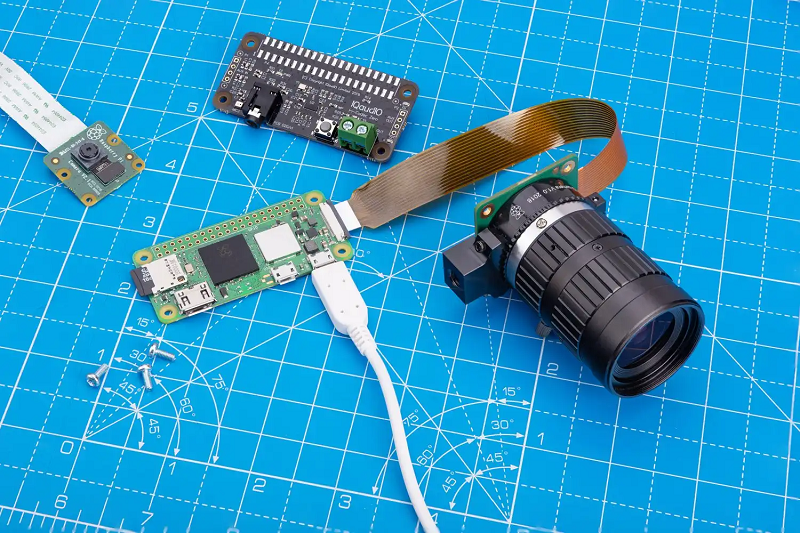

Raspberry Pi offers a wide range of high-quality, low-cost cables and adapters to get you up and running on your Raspberry Pi Zero 2 W.

We’ve got the power

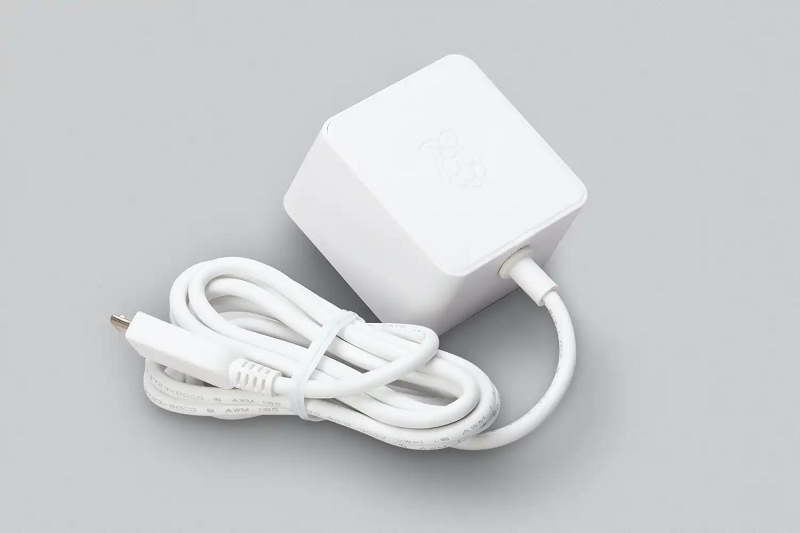

The official Raspberry Pi Micro USB Power Supply is designed to be the most reliable source of power for your Raspberry Pi Zero 2 W.

It is also compatible with any other Raspberry Pi that features a micro USB connector.

【產品規格】

• Form factor: 65mm × 30mm
• Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
• Memory: 512MB LPDDR2
• Connectivity:
• 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE,onboard antenna
• 1 × USB 2.0 interface with OTG
• HAT-compatible 40-pin I/O header footprint
• microSD card slot
• Mini HDMI port
• CSI-2 camera connector
• Video:
• HDMI interface
• Composite video
• Multimedia:
• H.264, MPEG-4 decode (1080p30)
• H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics
• Input power: 5V DC 2.5A
• Operating temperature: -20°C to +70°C

• Getting started guide
• Raspberry Pi Zero 2 W product brief
