EX1 通用Carrier Board (適用於Jetson Nano/Xavier NX 預裝wifi模組 支援4G & Nano SIM卡)

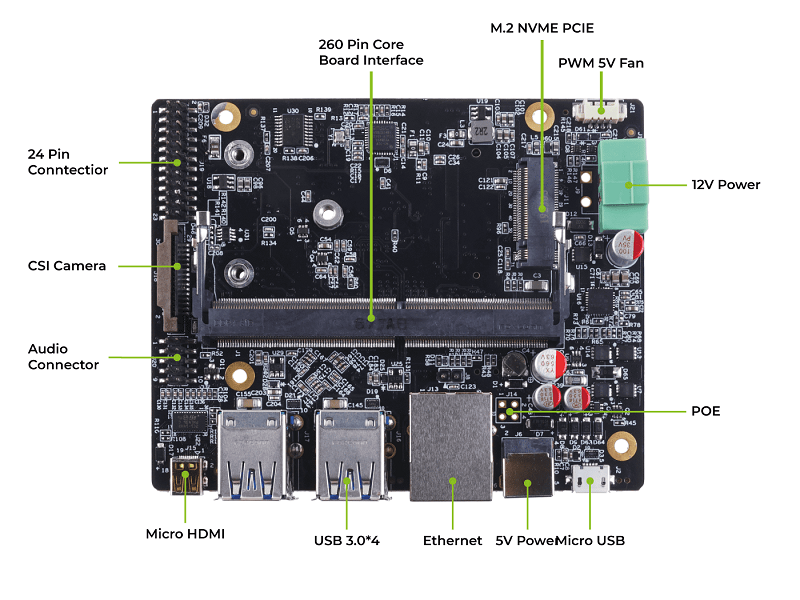

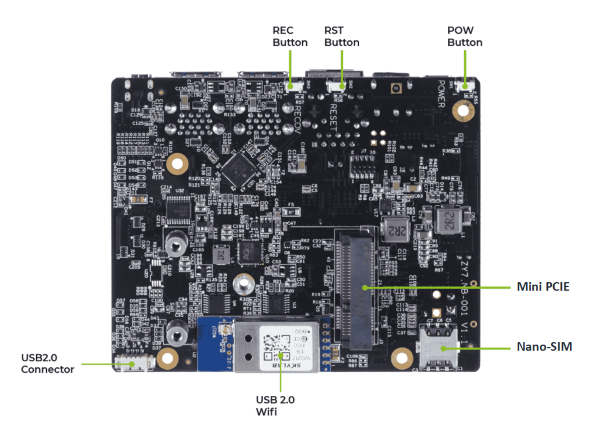

EX1 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing Mini PCIe (4G,TF,etc), Micro HDMI, Gigabit Ethernet, USB3.0, USB2.0, Pre-installed USB 2.0 Wifi, M.2 key M, CSI camera, RS232, CAN, PIO, I2C, Fan and other rich peripheral interfaces. Particularly, with the help of 4G module and SIM card, it could realize long-distance and even global communication.

Basically, it works with an NVIDIA Jetson Nano /NVIDIA Xavier NX / NVIDIA Jetson TX2 NX module to achieve graphic AI applications. To be more specific, with the NVIDIA module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It is suitable for intelligent edge devices such as urban smart parking lot management, robots, drones, smart cameras, and portable medical equipment. Also, it is good for portrait tracking and suspicious object detection in special fields. After learning and training, it can be deployed to image terminal guidance, underwater facility inspection and rescue, etc. With the NVIDIA module and functional extension carrier board, people can quickly build efficient and high-performance video analysis applications, and realize the rapid development and deployment of high-performance video recognition.
