A205載板(適用於Jetson Nano/Xavier NX)

貨號：CCE0038

NT$12,800

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

了解更多

送貨及付款方式

顧客評價

【產品簡介】

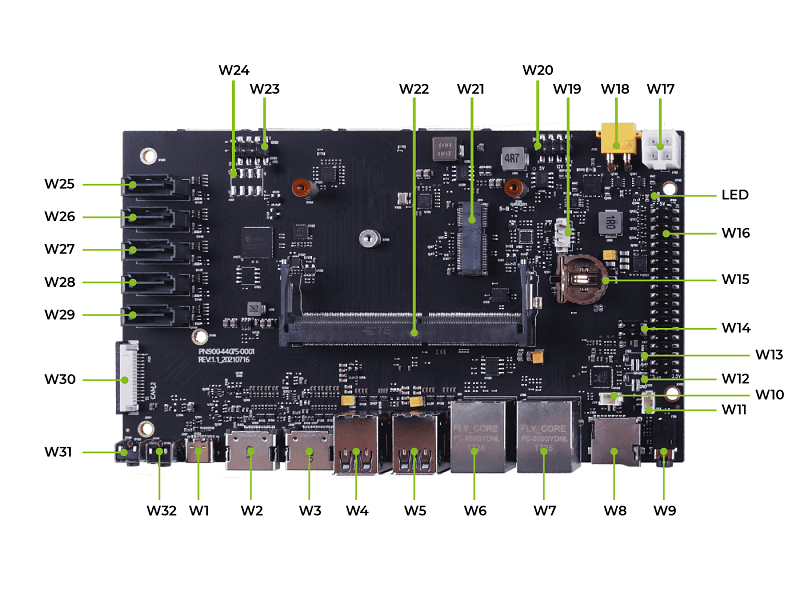

A205 is a extended carried board specifically for NVIDIA Jetson Nano / Xavier NX. The rich peripheral interfaces make it suitable for edge areas to meet in demand as smart retail or video analysis.With the powerful NVIDIA controlling module(not included) and its rich SATA and CSI Camera interfaces, it is good for Automated Optical Inspection, In Video Action, Robot control, Drone, 3D modeling etc.

And it is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (w / OTG function) m.2 key ewifi / BT, m.2 key m, SATA, CSI camera, RS232, SD card, can, PIO, I2C, I2S fans and other rich peripheral interfaces are suitable for environments with strict environmental requirements, complicate real-time vision computation.

Basically, it only works with an NVIDIA Jetson Nano or an NVIDIA Xavier NX module to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX Module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicate AI graphical application such as Automated Optical Inspection, In Video Action, Robot controlAOI, 3D modeling, Drone, parallel computing for Computer vision. Overall, it can be widely deployed in edge ares to meet the demand as smart retail or video analysis.

【產品特色】

Up to 6 CSI Camera connection
Up to 5 SSD connector
2 HDMI
Supporting 4G communication
WiFi/ Bluetooth Supported
All-in-one solution with up to 3 fans interfaces for better heat dissipation consideration
Industrial Automation
Robotics
Healthcare
Computer Vision
Smart City
Smart Office

【產品規格】

Module Compatibility	NVIDIA® Jetson™ Nano/NX
PCB Size / Overall Size	170mm x 100mm
Display	2x HDMI
Ethernet	2x Gigabit Ethernet (10/100/1000M)
USB	4x USB 3.0 Type A (Integrated USB 2.0)
USB	1x USB 2.0 Type C(Support OTG)
SATA	1 x 5 SATA
M.2 Key E	1x M.2 Key E Interface

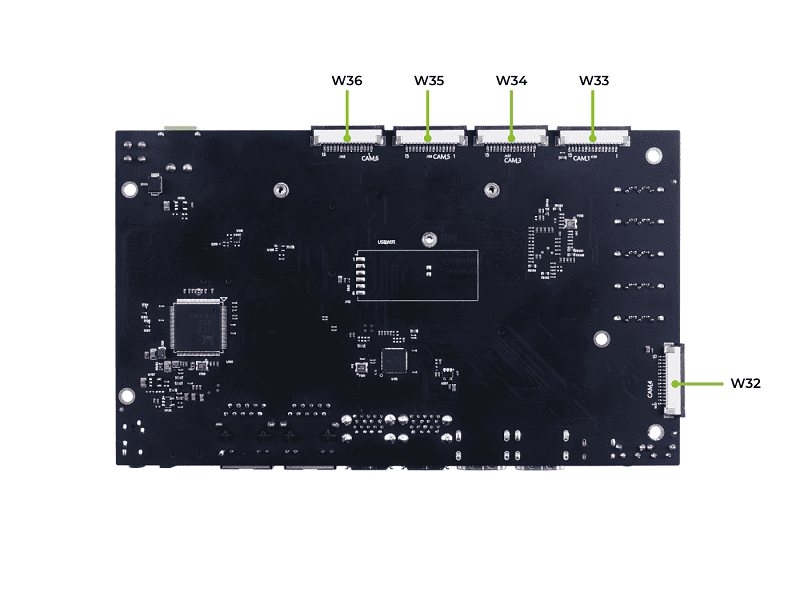

CSI Camera	6 x Camera (CSI Lane)
TF_Card	1 x TF_Card
USB WIFI Mode	Standard USB WIFI Mode(4 pin interface)
Audio	1 x Audio Jack,2 x Microphone, 2 x Speaker(1W)
SPI Bus	1 x SPI Bus(+3.3V Level)
FAN	2 x Fan(12V/5V),1 x FAN(5V PWM)
CAN	1 x CAN
Misc.	1 x System Control
	1 x Power Control
	2x I2C Link (+3.3V I/O)
	1 x UART(+3.3V Level)
	2 x GPIO(+3.3V Level)
	1 x SPI Bus(+3.3V Level)
	1 x LED State
Power Requirements	+13V to +19V DC Input @ 8A
Operating Temperature	-25° to +80°
