micro:bit 動感光波小車(不含micro:bit)(歐美款)

此產品不只讓您學會使用所有涵蓋的功能不僅是可程式編輯的越野車，還將使嶄露頭角的機器人手在整個機器人技術方面具有紮實的基礎。

此產品了解運動，以及如何利用光線和聲音，檢測和避障以及如何編寫代碼：MOVE Motor循線。當與micro：bit的無線電功能結合使用時，可能性是無限的。連接到機箱的是兩個帶有變速控制的雙向直流電馬達。車輪帶有橡膠輪胎，可以簡單地推入到馬達軸上。將BBC micro：bit插入邊緣連接器，即可開始編寫代碼。不需要其他組裝，也不需要工具。

There are built-in battery holders for 4x AA batteries. This provides a regulated voltage supply to power the BBC micro:bit which is fed into the edge connector. There is also a power switch to conserve batteries when the buggy is not in use. The micro:bit slots into the onboard edge connector. Code the micro:bit, plug it into the buggy, switch the power on, and then play.

:MOVE Motor can be coded using the Microsoft MakeCode editor. Kitronik has produced a set of custom MakeCode blocks to simplify coding the completed buggy. The booklet that comes with the buggy contains more detailed instructions on using the blocks and writing code. If you are feeling more adventurous or relish a challenge, :MOVE Motor can also be coded with Python. We have also produced some example Python code which you will find at the foot of the page.

Also within the booklet (that comes inside the box), are some quick tutorials to get you started. There are also additional online tutorials and step by step guides for extra projects.

• The Kitronik :MOVE Motor for the BBC micro:bit provides a fun introduction to buggy robotics and coding.
• It is backed up by a range of fun tutorials to introduce you to all of the great features.
• All of the tutorials and resources are free.
• There is no soldering required and assembly is quick and super simple.
• The buggy features two bi-direction DC motors.

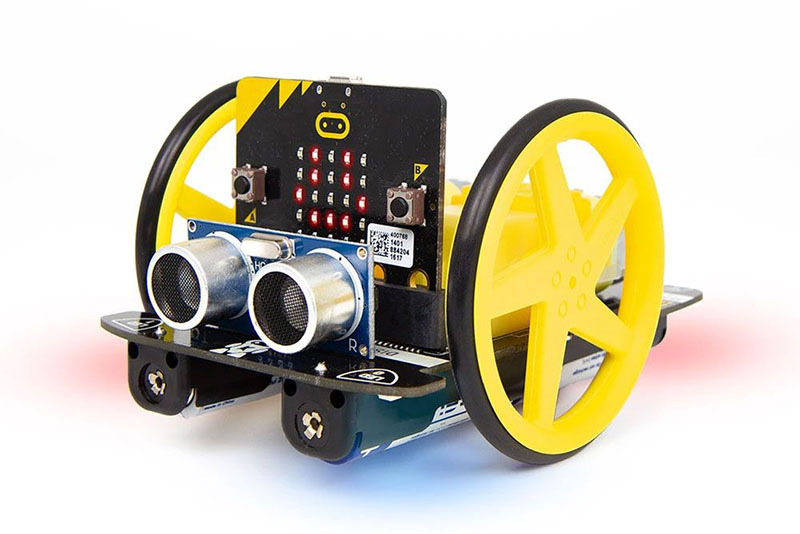

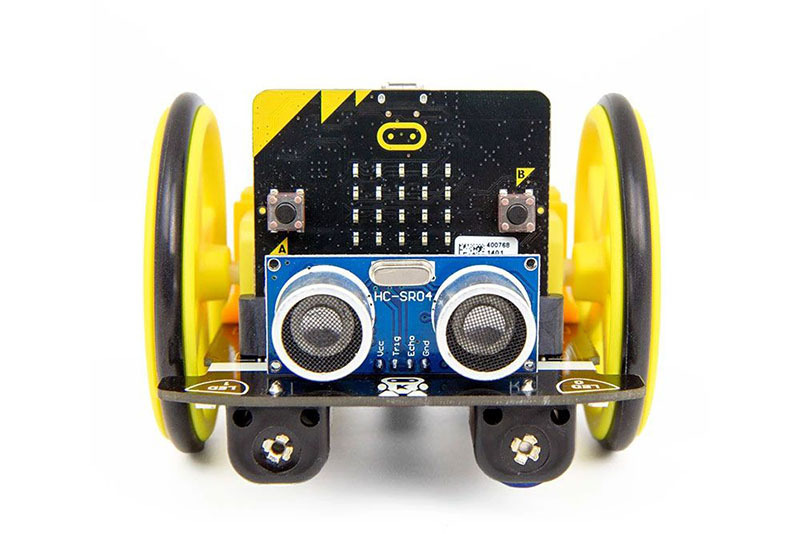

• There are ultrasonic distance and line following sensors onboard.

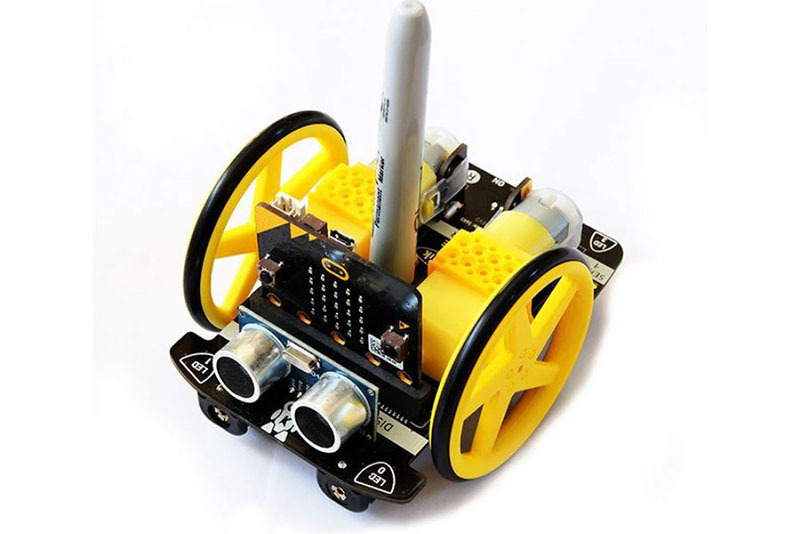

• It also features a Piezo sounder and pen mount.
• There are 4 full-colour programable ZIP LEDs.
• Two-pin outputs that are ideal for servo connections (can be used for other inputs and outputs).
• The battery holder is built onto the chassis.
• The buggy is also fitted with a power switch to conserve the batteries.
• There is also an onboard edge connector for the micro:bit, code, plug and play.
• Kitronik has produced custom MakeCode blocks to simplify coding with the MakeCode editor.
• It is available as a single buggy kit or as a 20pk. The 20pk represents a cost-saving, making it ideal for the classroom.

• 長：111mm。
• 寬：90mm（帶輪子）。
• 高：67mm。

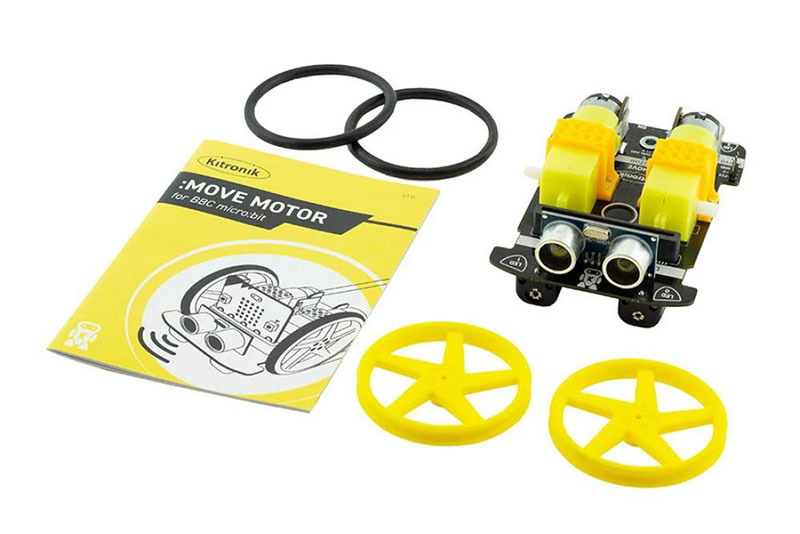

• 1 x micro:bit.
• 1 x USB Type-A to Micro-B USB Noodle Cable.
• 4 x AA batteries.

• 6 Online MakeCode Tutorials.
• Drawing Robot Tutorial.
• Lights & Sound Tutorial.
• Line Following Tutorial.
• Motor Adjustment Tutorial.
• Sensor Tutorial.
• Example MicroPython Code.
