【產品簡介】

以NVIDIA Jetson Orin NX 16GB 主板作為核心，無內置儲存空間，可提供高達70 TOPS~100 TOPS的AI性能，搭配128GB NVMe固態硬碟，可高速讀寫，滿足大運算AI開發項目的需求。

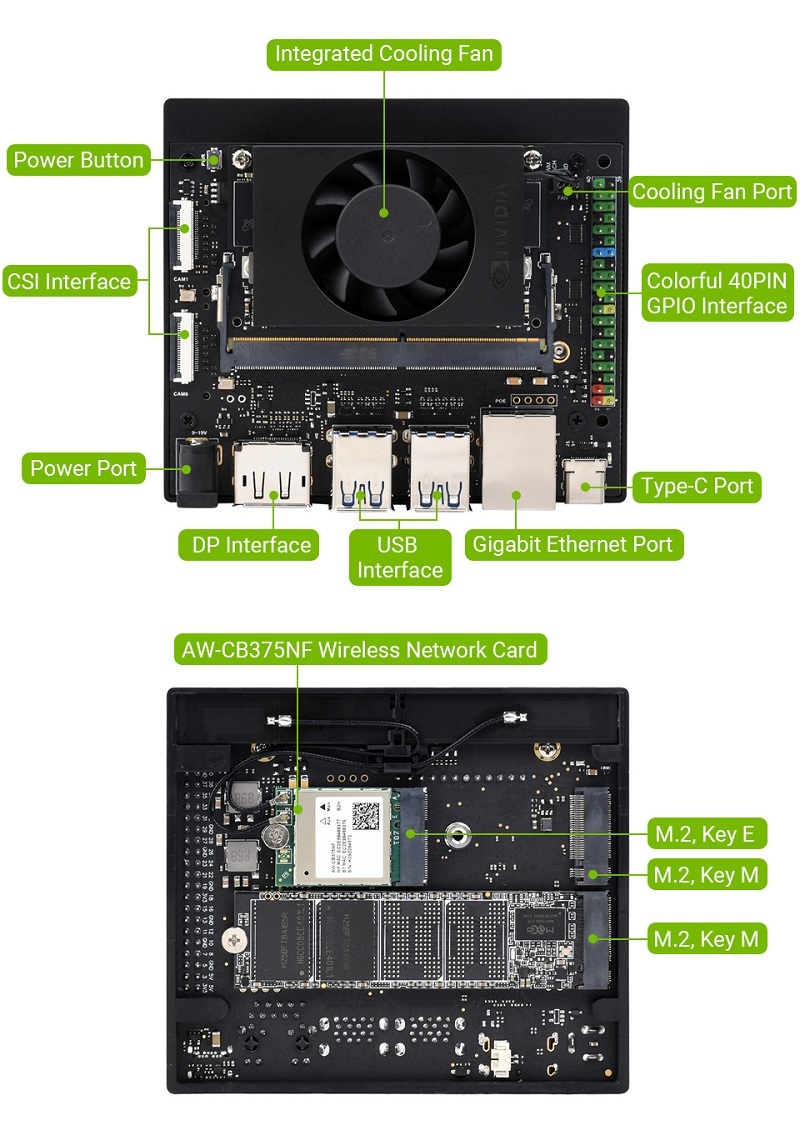

裝載AW-CB375NF雙頻無線網卡，支持藍牙5.0、WIFI，同時加裝PCB天線，為開發套件提供高速、穩定的無線網路和藍牙通訊功能。

【產品規格】

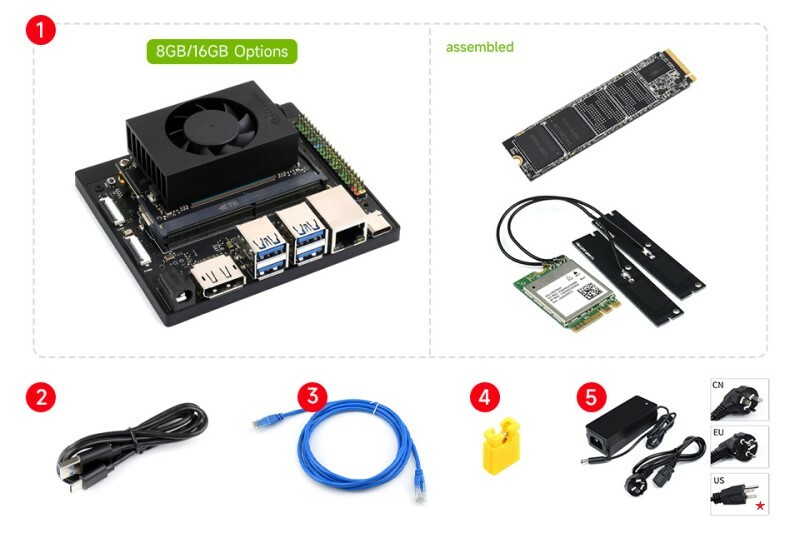

【配置】

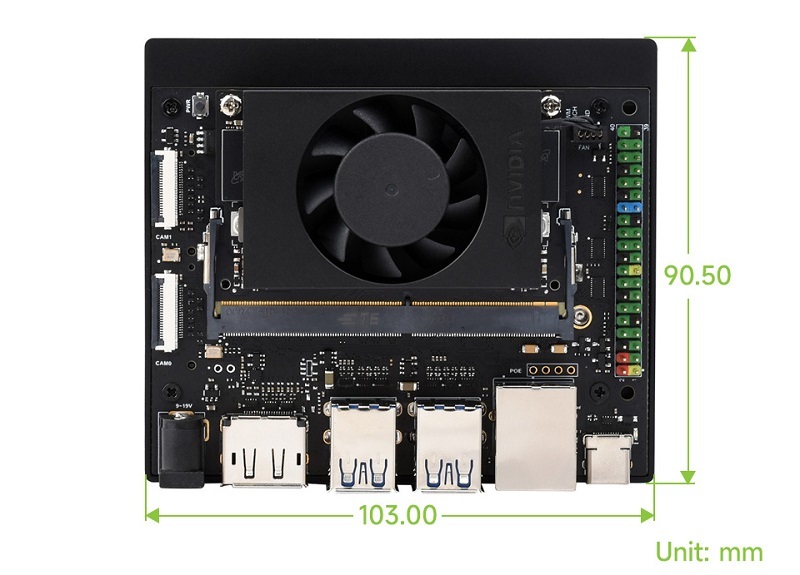

【尺寸】

規格比較：8GB SUB和16GB SUB

VERSION	8GB	16GB
AI PERFORMANCE	70TOPS	100TOPS
GPU	1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
GPU FREQUENCY	765MHz (Max)	918MHz (Max)
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
CPU FREQUENCY	2GHz (Max)
DL ACCELERATOR	1x N-VDLA v2	2x N-VDLA v2
DLA FREQUENCY	614MHz (Max)
VISION ACCELERATOR	1x PVA v2
MEMORY	8GB 128-bit LPDDR5, 102.4GB/s	16GB 128-bit LPDDR5, 102.4GB/s
STORAGE	Supports external NVMe
POWER	10W ~ 20W	10W ~ 25W
PCIE	1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
USB*	3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0
CSI CAMERA	Up to 4 cameras (8 via virtual channels**) 8 lanes MIPI CSI-2 D-PHY 1.2 (up to 20 Gbps)
VIDEO ENCODE	1x 4K60 (H.265) \| 3x 4K30 (H.265) 6x 1080p60 (H.265) \| 12x 1080p30 (H.265)
VIDEO DECODE	1x 8K30 (H.265) \| 2x 4K60 (H.265) \| 4x 4K30 (H.265) 9x 1080p60 (H.265) \| 18x 1080p30 (H.265)
DISPLAY	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
OTHER	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO
NETWORKING	1x GbE
DIMENSIONS	69.6 mm x 45 mm 260-pin SO-DIMM connector
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin NX are subject to change Refer to the Software Features section of the latest N-VIDIA Jetson Linux Developer Guide for a list of supported features.
