GP2Y0A710K0F 紅外線距離感測器(含線) 夏普測距 Arduino

貨號：SSI0048

NT$410

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

了解更多

送貨及付款方式

顧客評價

【產品簡介】

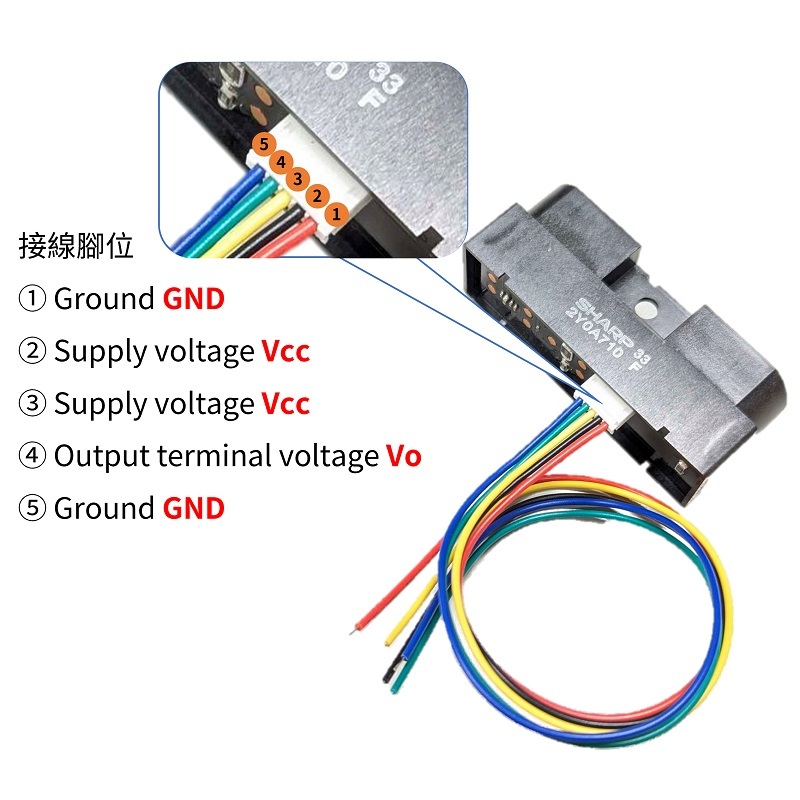

夏普製造的紅外線接近感測器，使用5PIN JST接頭，贈連接線。適用如3C、娛樂等產品開發應用。

【產品規格】

電壓：5V
距離：100cm~550cm
訊號：類比
尺寸：58×17.6×22.5 mm

Arduino 範例碼

Sharp GP2Y0A710K0F infrared proximity sensor (#28999)

Collects an average of five readings from the sensor and displays the

resulting value about every half second.

See the Sharp_GP2Y0A710KOF_Simple demonstration for additional usage notes,

including connection diagram.

This example code is for the Arduino Uno and direct compatible boards, using the

Arduino 1.0 or later IDE software. It has not been tested, nor designed for, other

Arduino boards, including the Arduino Due.

const int irSense = A0; // Connect sensor to analog pin A0

int distance = 0;

void setup() {

Serial.begin(9600); // Use Serial Monitor window

}

void loop() {

Serial.println(irRead(), DEC); // Call irRead function to read sensor

// Print value in Serial Monitor

delay(250); // Wait another 1/4 second for the next read

// (Note: Because of delays built into the

// irRead function the display of values will

// be slower than in the SharpGP2Y0A21_Simple

// sketch

}

// Take multiple readings, and average them out to reduce false readings

int irRead() {

int averaging = 0; // Holds value to average readings

// Get a sampling of 5 readings from sensor

for (int i=0; i<5; i++) {

distance = analogRead(irSense);

averaging = averaging + distance;

delay(55); // Wait 55 ms between each read

// According to datasheet time between each read

// is -38ms +/- 10ms. Waiting 55 ms assures each

// read is from a different sample

}

distance = averaging / 5; // Average out readings

return(distance); // Return value

}

【文件下載】

http://www.sharp.co.jp/products/device/doc/opto/gp2y0a710k_e.pdf
