ColorPAL 顏色感測器

ColorPAL是一種小型的顏色和光感測器，透過它的RGB LED，亦可作為辨識色彩時的產生器。

當檢測顏色時，ColorPAL使用其LED照亮樣本；一種色彩元素組成的時候，會隨著產生一種譜光，轉換到電壓轉換器來測量反射回來的光。

從樣本反射的光量，分成紅色(R)，綠色(G)和藍色(B)三原色 來確定樣本的顏色。本ColorPAL工作於非瑩光的反射面，最好是接觸在它的LED光罩。

【產品規格】

• 電源要求：5.0V
• 通訊：Serial 1-Wire (asynchronous serial, open drain)串列單接口
• 尺寸：44 × 23 × 17mm

【文件下載】

• ColorPAL Color Sensor - downloads

• BlocklyProp Block Reference (Parallax Learn site)
• Candy Sorter BlocklyProp Project (Parallax Learn site)
• ColorPAL Arduino Demo (Parallax Learn site)

補充資料

Arduino Code:



/* ColorPal Sensor Example for Arduino
  Author: Martin Heermance, with some assistance from Gordon McComb
  This program drives the Parallax ColorPAL color sensor and provides
  serial RGB data in a format compatible with the PC-hosted
  TCS230_ColorPAL_match.exe color matching program.
*/

#include <SoftwareSerial.h>

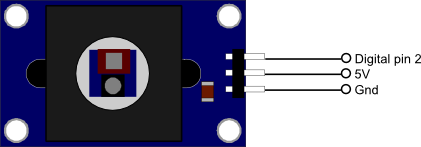

const int sio = 2;            // ColorPAL connected to pin 2
const int unused = 255;         // Non-existant pin # for SoftwareSerial
const int sioBaud = 4800;
const int waitDelay = 200;

// Received RGB values from ColorPAL
int red;
int grn;
int blu;

// Set up two software serials on the same pin.
SoftwareSerial serin(sio, unused);
SoftwareSerial serout(unused, sio);

void setup() {
  Serial.begin(9600);
  reset();                  // Send reset to ColorPal
  serout.begin(sioBaud);
  pinMode(sio, OUTPUT);
  serout.print("= (00 $ m) !"); // Loop print values, see ColorPAL documentation
  serout.end();              // Discontinue serial port for transmitting

  serin.begin(sioBaud);            // Set up serial port for receiving
  pinMode(sio, INPUT);
}

void loop() {
  readData();
}

// Reset ColorPAL; see ColorPAL documentation for sequence
void reset() {
  delay(200);
  pinMode(sio, OUTPUT);
  digitalWrite(sio, LOW);
  pinMode(sio, INPUT);
  while (digitalRead(sio) != HIGH);
  pinMode(sio, OUTPUT);
  digitalWrite(sio, LOW);
  delay(80);
  pinMode(sio, INPUT);
  delay(waitDelay);
}

void readData() {
  char buffer[32];

  if (serin.available() > 0) {
    // Wait for a $ character, then read three 3 digit hex numbers
    buffer[0] = serin.read();
    if (buffer[0] == '$') {
      for(int i = 0; i < 9; i++) {
        while (serin.available() == 0);     // Wait for next input character
        buffer[i] = serin.read();
        if (buffer[i] == '$')               // Return early if $ character encountered
          return;
      }
      parseAndPrint(buffer);
      delay(10);
    }
  }
}

// Parse the hex data into integers
void parseAndPrint(char * data) {
  sscanf (data, "%3x%3x%3x", &red, &grn, &blu);
  char buffer[32];
  sprintf(buffer, "R%4.4d G%4.4d B%4.4d", red, grn, blu);
  Serial.println(buffer);
}
