Raspberry Pi Camera Module 3 NoIR 夜視攝影鏡頭樹莓派

貨號：VEO0092

【產品特色】

● 高解析度的影像
● 快速自動對焦
● 可適用低光夜視攝影

NT$1,050

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

了解更多

送貨及付款方式

顧客評價

【產品簡介】

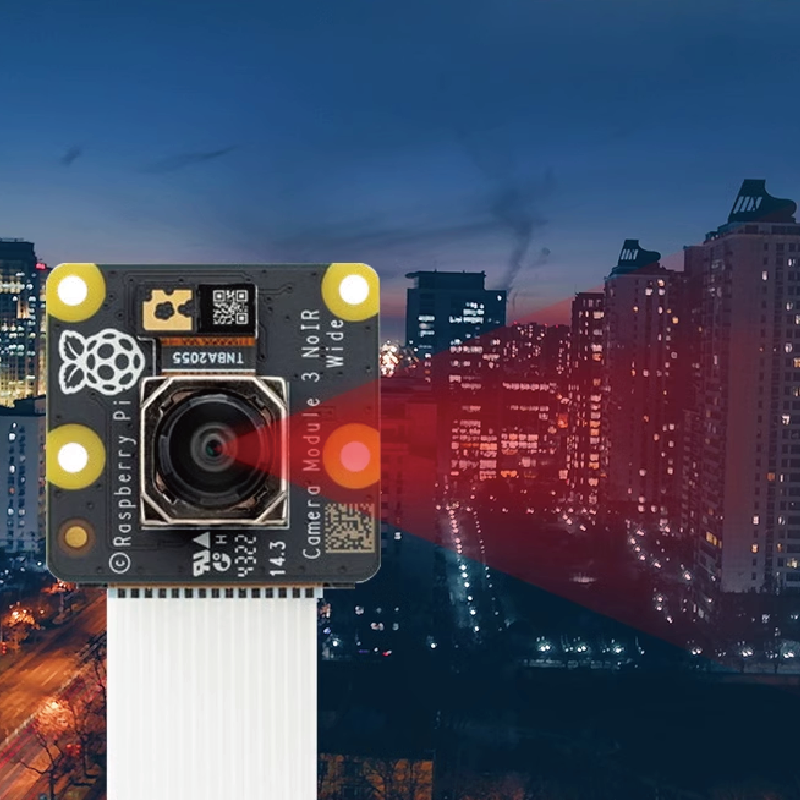

Raspberry Pi Camera Module 3 NoIR 是一款樹莓派的精巧型相機，不含紅外線濾鏡，視野為 66 度。

它配備了 HDR功能 IMX708 1200 萬像素感光元件，並具有快速自動對焦功能。

Camera Module 3 可用於拍攝全高清視頻以及靜態照片，並具有高達 300 萬像素的 HDR 模式。

【產品特色】

● Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)

● High signal-to-noise ratio (SNR)

● Built-in 2D Dynamic Defect Pixel Correction (DPC)

● Phase Detection Autofocus (PDAF) for rapid autofocus

● QBC Re-mosaic function

● HDR mode (up to 3-megapixel output)

● CSI-2 serial data output

● 2-wire serial communication (supports I2C fast mode and fast-mode plus)

● 2-wire serial control of focus mechanism

【鏡頭規格】

● Effective focal length 4.74mm

● f/1.8

● Diagonal field of view 75 degrees (at 16:9)

● 35mm equivalent focal length roughly 28mm (full width) – 30mm (3:2 crop)

● Focus 10cm – infinity

【產品規格】

● Sensor: Sony IMX708

● Resolution: 11.9 megapixels

● Sensor size: 7.4mm sensor diagonal

● Pixel size: 1.4μm × 1.4μm

● Horizontal/vertical: 4608 × 2592 pixels

● Common video modes: 1080p50, 720p100, 480p120

● Output: RAW10

● IR cut filter: Not present (NoIR)

● Autofocus system: Phase Detection Autofocus

● Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)

● Ribbon cable length: 150mm

● Cable connector: 15 × 1mm FPC

● Compliance:

　FCC 47 CFR Part 15, Subpart B, Class B Digital Device

　Electromagnetic Compatibility Directive (EMC) 2014/30/EU

　Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

● Production lifetime: Raspberry Pi Camera Module 3 will remain in production until at least January 2030
