【產品簡介】

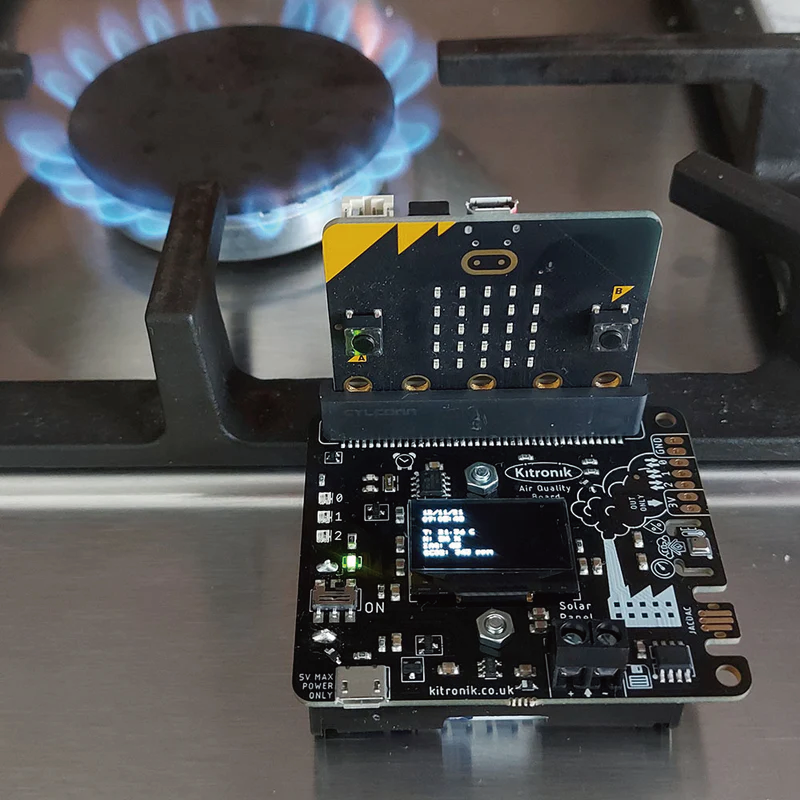

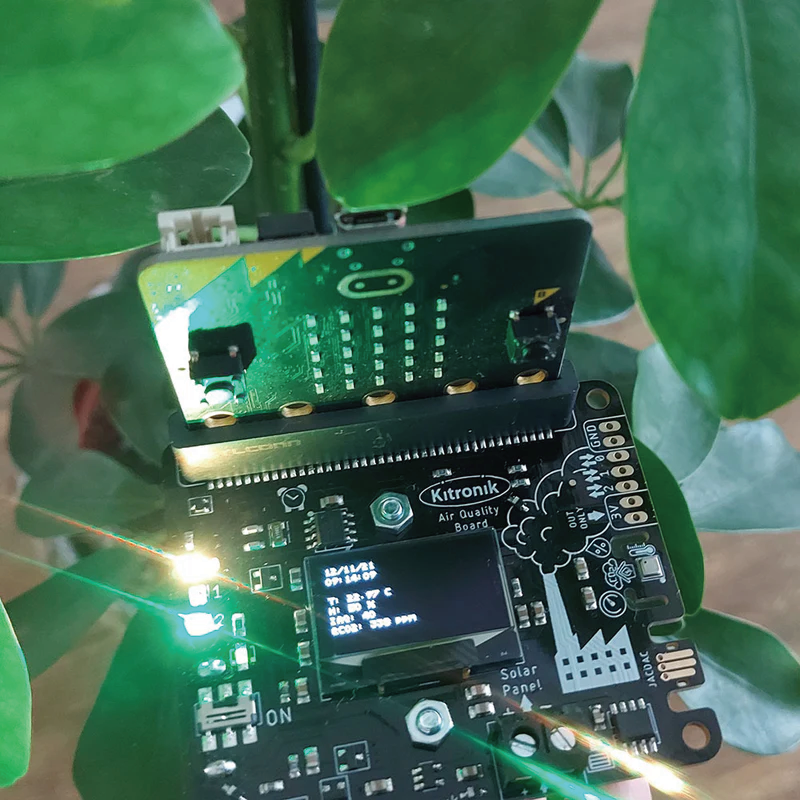

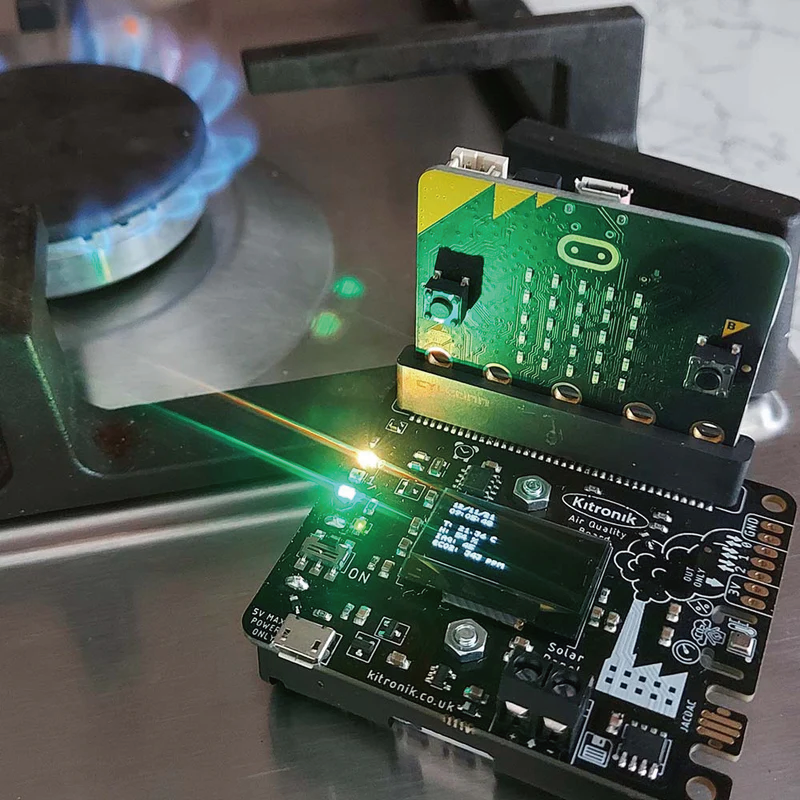

Kitronik 空氣品質板為 BBC micro:bit 提供完整的空氣監測和報告解決方案。豐富的板載感測器和連接點使您能夠收集大量的空氣品質數據,
這些數據可以儲存在板載記憶體中並顯示在 OLED 螢幕上或傳輸到電腦進行分析。
空氣品質板非常適合教室。進行短期或長期的課堂實驗,例如;全年監測空氣質量,無論是否開啟供暖。
然後,您可以使用收集到的數據來產生圖表等。或者,它可以為辦公室/車間錦上添花,
讓科學告訴您何時需要打開這些窗戶或提醒您給工作區域通風。
該板包含一個整合式邊緣連接器,可讓您的 BBC micro:bit 輕鬆插入。板上感測器可讀取溫度、壓力、濕度、空氣品質指數和 eCO2。
即時時鐘 (RTC) 和 1Mbit 的板上 EEPROM 記憶體可記錄時間戳資料並長期儲存資料。板上還有 3 個狀態 ZIP LED,可用於直觀顯示資料。
BBC micro:bit 的 3 個引腳 (引腳 0、1 和 2) 細分為 0.1" 間距焊墊,允許附加感測器或輸出。此外,還有 3V 和 GND 焊墊可為這些裝置提供電源。
【產品特色】
● An all in one Air Quality monitoring and reporting solution for the BBC micro:bit.
● Measure temperature, pressure, humidity, air quality index, and eCO2.
● Pins 0, 1 and 2 are broken out to solder pads for additional I/O.
● The board features a black and white 128x64 OLED display screen and 3 status ZIP LEDs for visually displaying data.
● The real-time clock (RTC) and 1Mbit of onboard EEPROM memory enable timestamped data logging and long term data storage.
● Online MakeCode tutorials that introduce you to all of the boards key features.
● Run long term monitoring experiments in the classroom throughout the school year.
● There is an integrated edge connector for the micro:bit to slot into.
● The board also features a connection point for a solar cell that can be used alongside rechargeable batteries to keep your experiments running for longer.
● Kitronik has produced custom MakeCode blocks for convenient and straightforward coding.
● It can be coded with MakeCode/Javascript/Python.
【實驗應用】
【產品尺寸】
【產品文件】● Length:68.5mm● Width:48mm● Height:28.5mm● PCB Thickness:1.6mm
