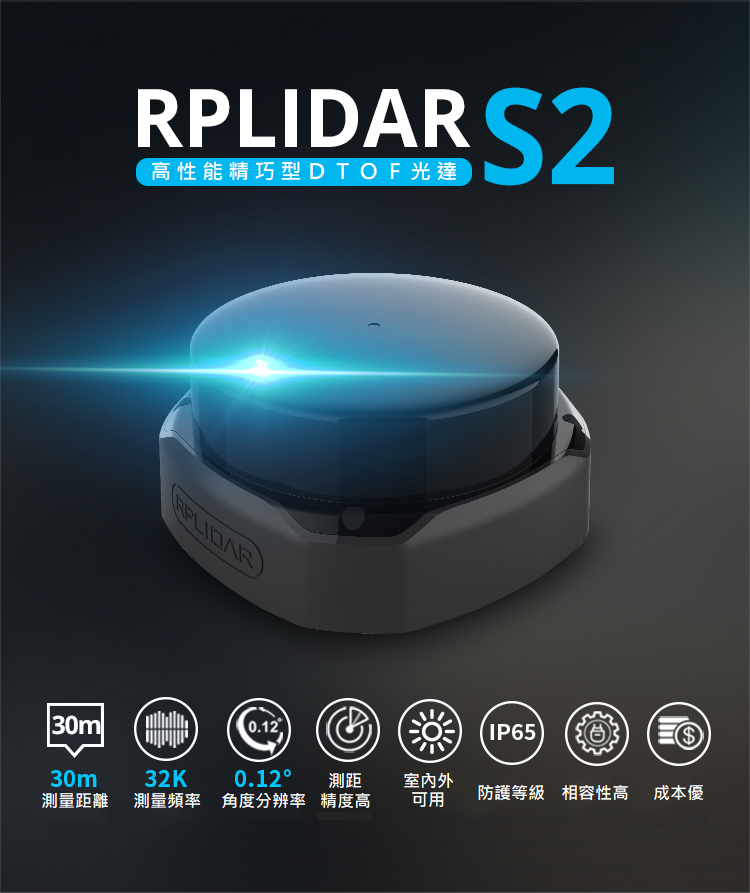

貨號:SSL0033
● 量測距離:30公尺
● 量測頻率:32000次/秒

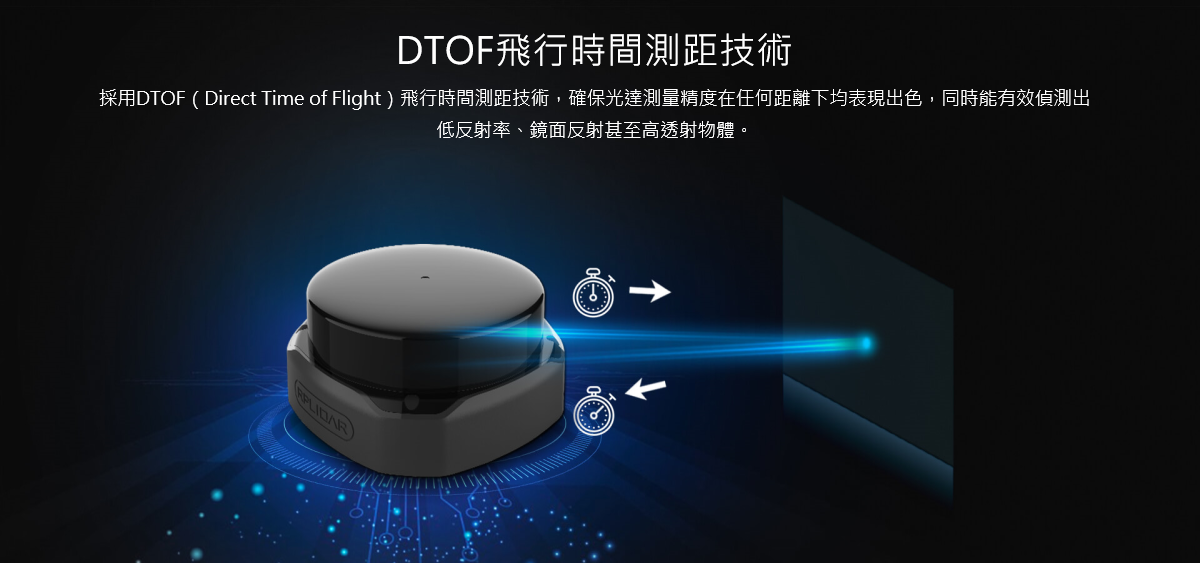

● TOF 測距技術
商品存貨不足,未能加入購物車
您所填寫的商品數量超過庫存
{{'products.quick_cart.out_of_number_hint'| translate}}
{{'product.preorder_limit.hint'| translate}}
每筆訂單限購 {{ product.max_order_quantity }} 件
現庫存只剩下 {{ quantityOfStock }} 件

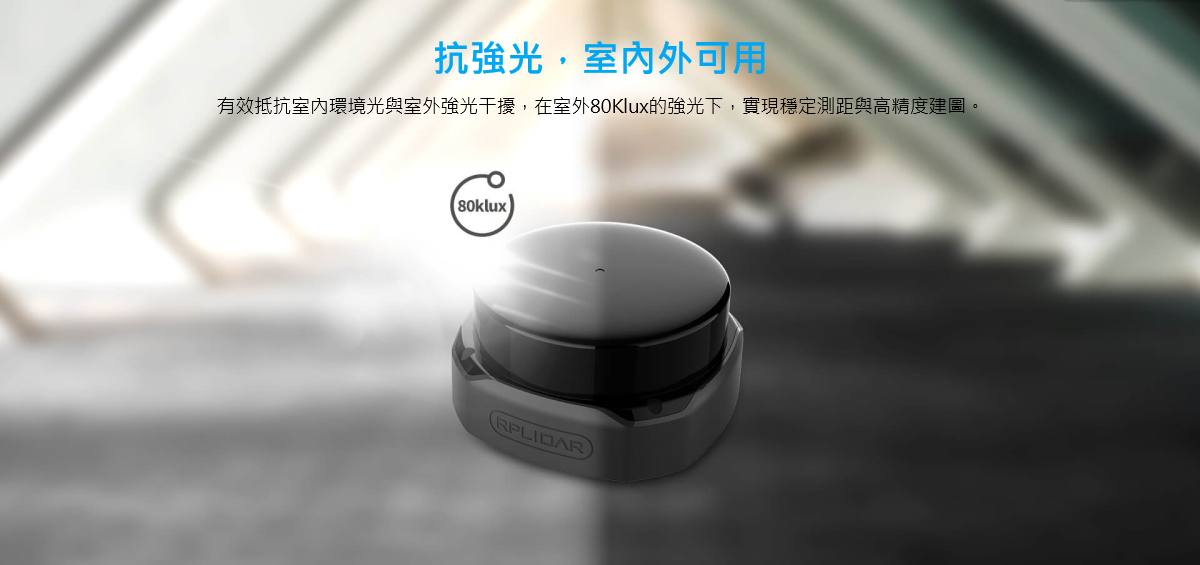

應用場景 | 適合室內外環境,可靠的抗日光能力 | ||
---|---|---|---|
產品 | S2L | S2 | S2E |
型號 | S2M1-RxL | S2M1-Rx | S2M1-RxE |

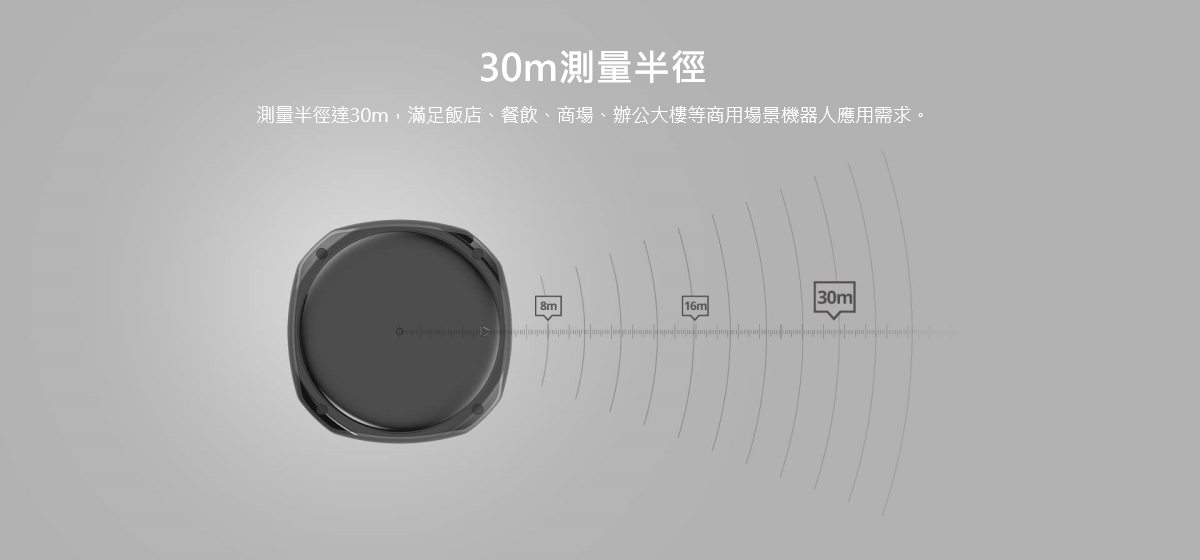

測量半徑 |
0.05-18m(90%反射率)
0.05-8m(黑色物體)
|
0.05-30m(90%反射率)
0.05-10m(黑色物體)
|
0.05-30m(90%反射率)
0.05-10m(黑色物體)
|
測量盲區 | 0.05m | ||

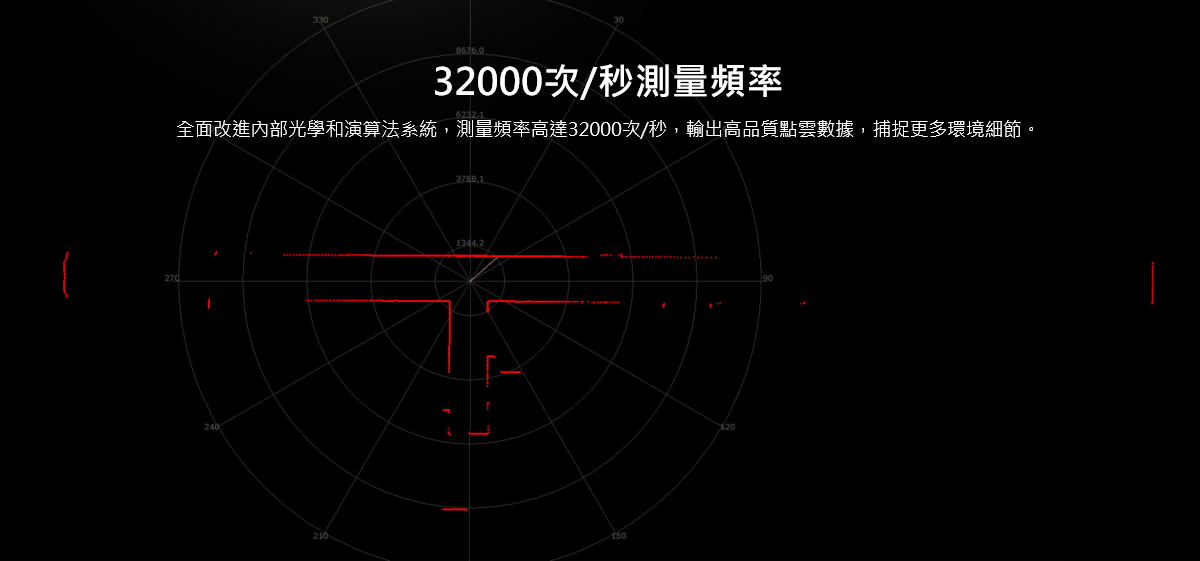

測量頻率 | 32000次/秒 | ||
掃描頻率 | 10Hz | ||
角度分辨率 | 0.12° | ||
俯仰角 | ±1.5° | ||

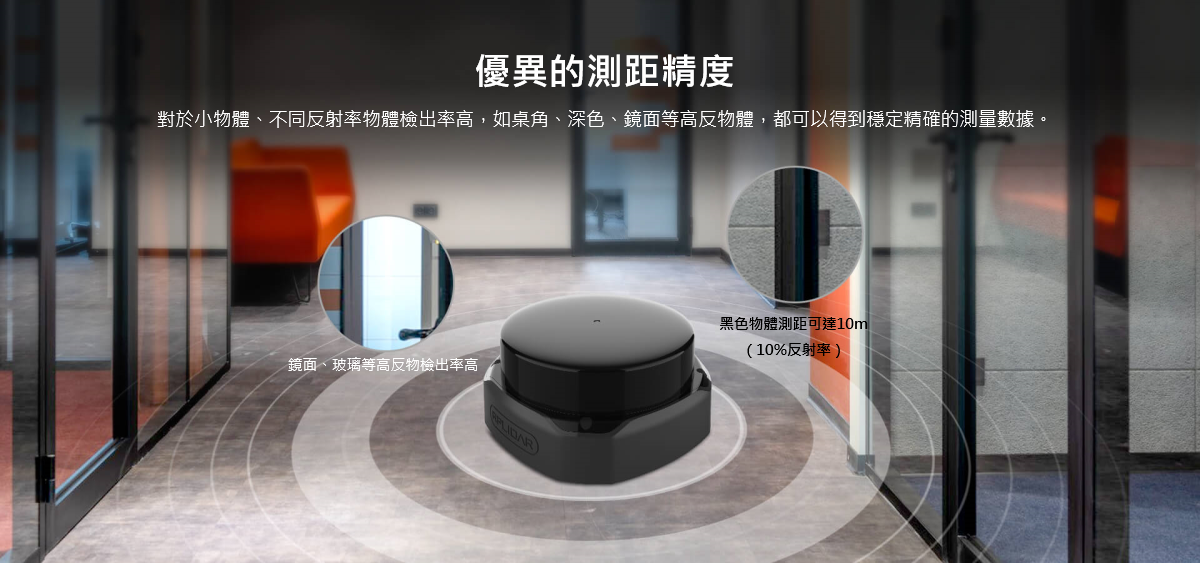

測距精度 | ±30mm | ||
測距分辨率 | 13mm | ||

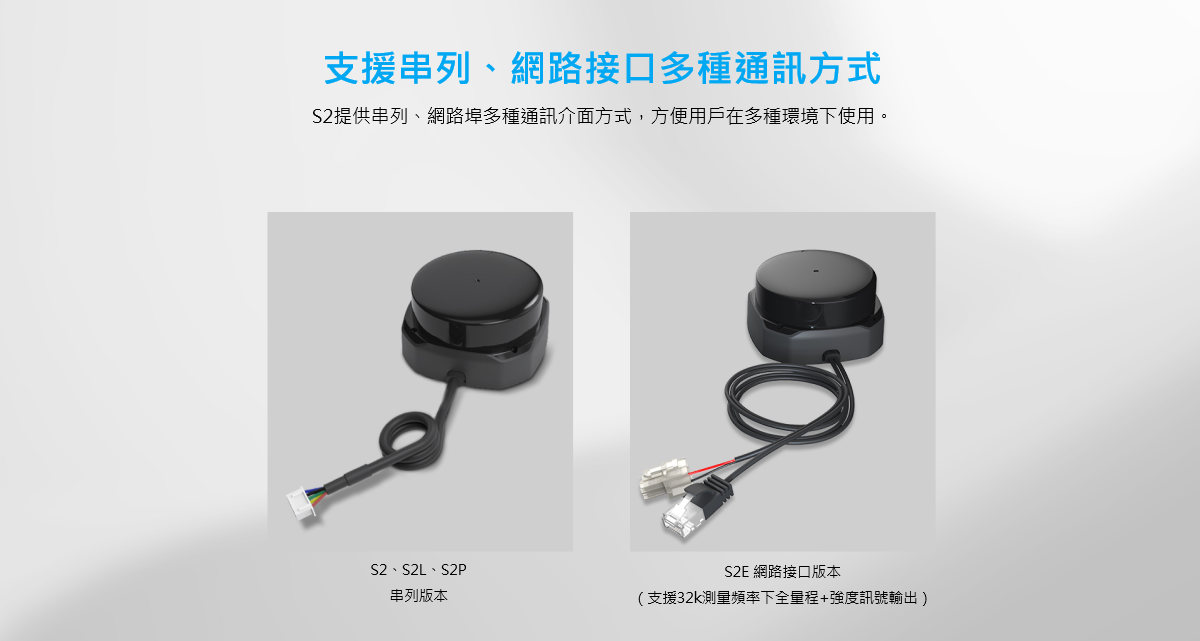

通訊接口 | URAT串口(1M) | URAT串口(1M) | Ethernet UDP(10/100M) |
工作電壓 | 5V | 12V | |
功耗 | > 2W | ||

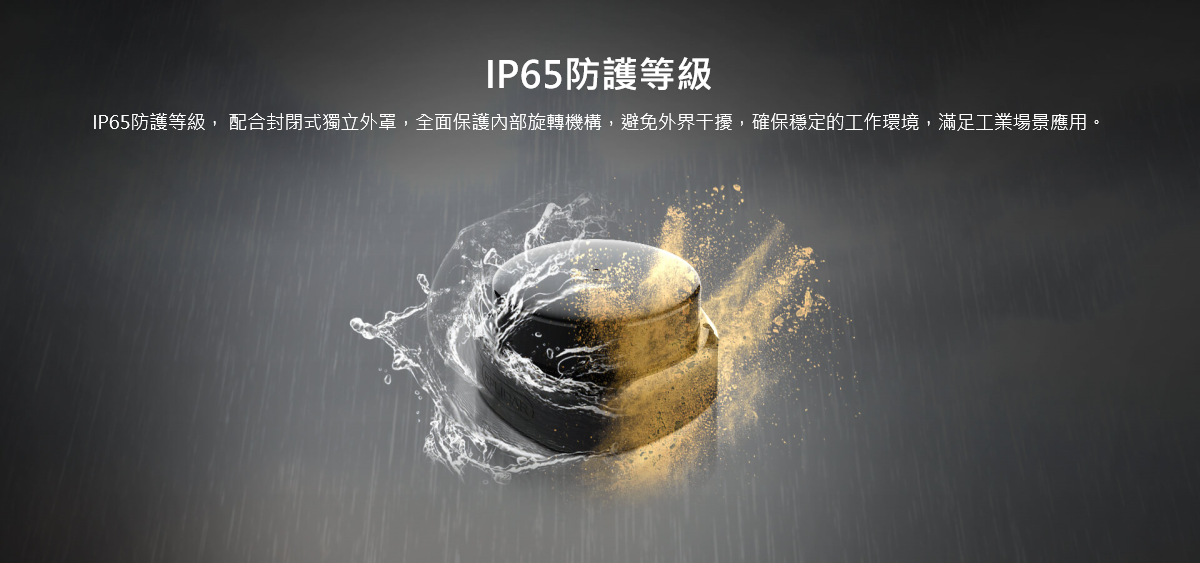

防護等級 | IP65 | ||
工作溫度 | -10℃-50℃ | ||
註釋:x表示1或者2,負角度俯仰角為1( -1.5°-0°(不含0°)),正角度俯仰角為2(0°-1.5°(含0°)) |
