MQ-138 甲醛氣體感測器模組

MQ-138 甲醛氣體感測器模組

貨號:CSS0034


NT$900
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量
加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。
加入追蹤清單
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

MQ138 Formaldehyde Aldehydes Sensor Module  is sensor used for the detection of most of the volatile gases such as:
  • Aaldehydes
  • Alcohols
  • Ketones
  • Aromatic compounds

Equiped with SnO2 sensitive sensor material which has higher sensitivity upon high gas concentration. The sensor can be used as breath alcohol detector, and etc.

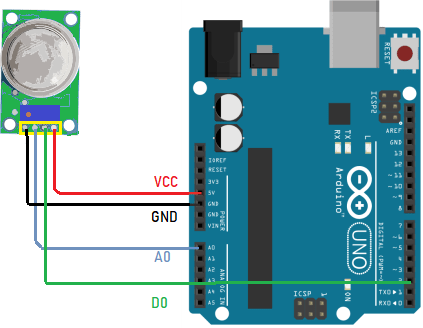

【接線示意圖】


【產品規格】

  • Module with MQ138 gas sensor and circuitry to enable easy plug and use, just connect power and the module is ready to interface with microcontroller.
  • Working voltage: DC 5V
  • Comes with power and digital signal LED indicator
  • 2-way signal output (analog output, and TTL-level output)
  • TTL output valid signal is low; (low output signal light, which can be accessed microcontroller IO port)
  • Analog output increases with the concentration, the higher the voltage the higher the concentration Aldehydes, alcohols, ketones, aromatic compounds with high sensitivity
  • With a long life and reliable stability
  • Fast response characteristics
  • With mounting holes for easy permanent installation
  • Main chip: LM393, formaldehyde-sensing probe
  • Size: 35mm x 20mm x 28mm
  • Weight: 14 g

【產品特色】

For home, volatiles environment detection means, be suitable for detection of aldehydes, alcohols, ketones, aromatic compounds, gas sensitive element concentration ranges:
  • Benzene 1 to 100ppm
  • Toluene 10 to 100ppm
  • Methanol 5 to 100ppm
  • Alcohol 30 to 300ppm
  • Formaldehyde 1 to 10ppm
  • Acetone 10 to 300ppm
