ESP32-C3-DevKitC-02 開發板

ESP32-C3-DevKitC-02 開發板

貨號:CEE0078


NT$560
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量

以優惠價加購商品 (最多 {{ addItemQuantity }} 件)

電源模組套件(含麵包板)
優惠價 NT$121

加入追蹤清單

加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。
加入追蹤清單
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

ESP32-C3-DevKitC-02 is an entry-level development board based on ESP32-C3-WROOM-02, a general-purpose module with 4 MB SPI flash.
This board integrates complete Wi-Fi and Bluetooth LE functions.

Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-02 on a breadboard

【產品規格】

  • ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz
  • 384 KB ROM
  • 400 KB SRAM
  • 8 KB RTC SRAM
  • 40 MHz crystal oscillator
  • 4 MB SPI flash
  • Operating Voltage/ Power supply: 3.0~3.6 V
  • Operating Temperature Range: –40~85°C

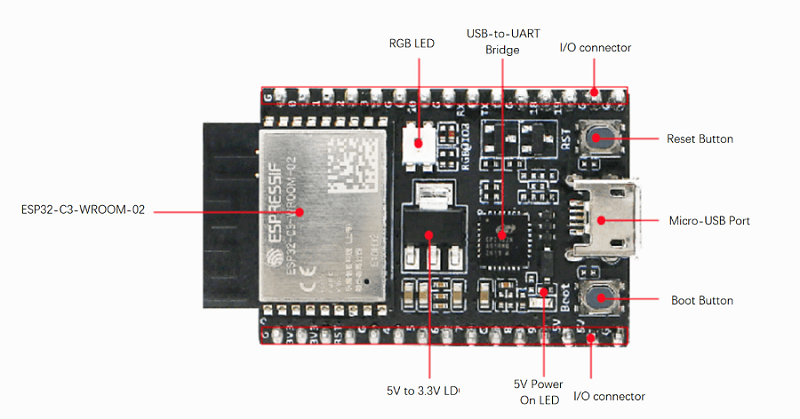

【元件說明】


  • ESP32-C3-WROOM-02:ESP32-C3-WROOM-02 from Espressif is a powerful and general-purpose module that offers Wi-Fi and Bluetooth LE coexistence. It has a PCB antenna and a 4 MB SPI flash.
  • 5 V to 3.3 V LDO:Power regulator that converts a 5 V supply into a 3.3 V output.
  • 5 V Power On LED:Turns on when the USB power is connected to the board.
  • I/O Connector:All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board.
  • Boot Button:Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
  • Micro-USB Port:USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-C3 chip.
  • Reset Button:Press this button to restart the system.
  • USB-to-UART Bridge:Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps.
  • RGB LED:Addressable RGB LED, driven by GPIO8.

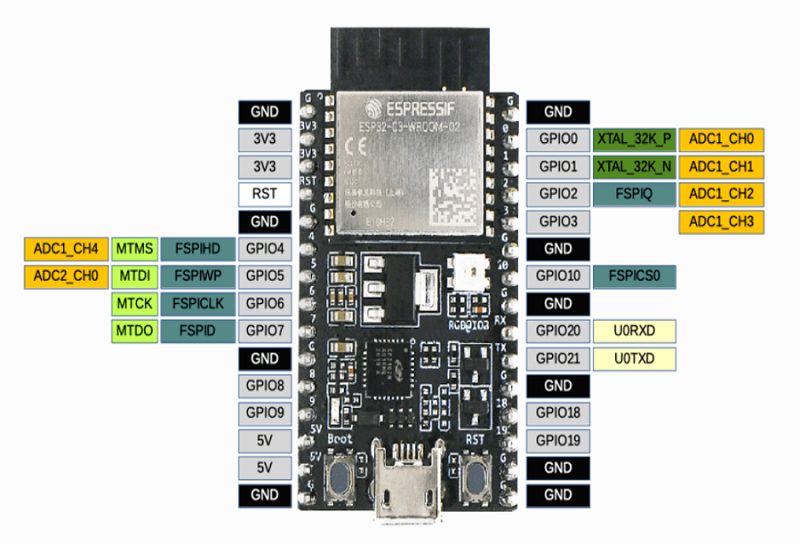

【接腳說明】



【產品特色】

  • Integrates complete Wi-Fi functions.
  • Integrates complete Bluetooth LE functions.

【文件下載】
