Board for Raspberry Pi Pico

Board for Raspberry Pi Pico

貨號:DTI0095


NT$720
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量
加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。
加入追蹤清單
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

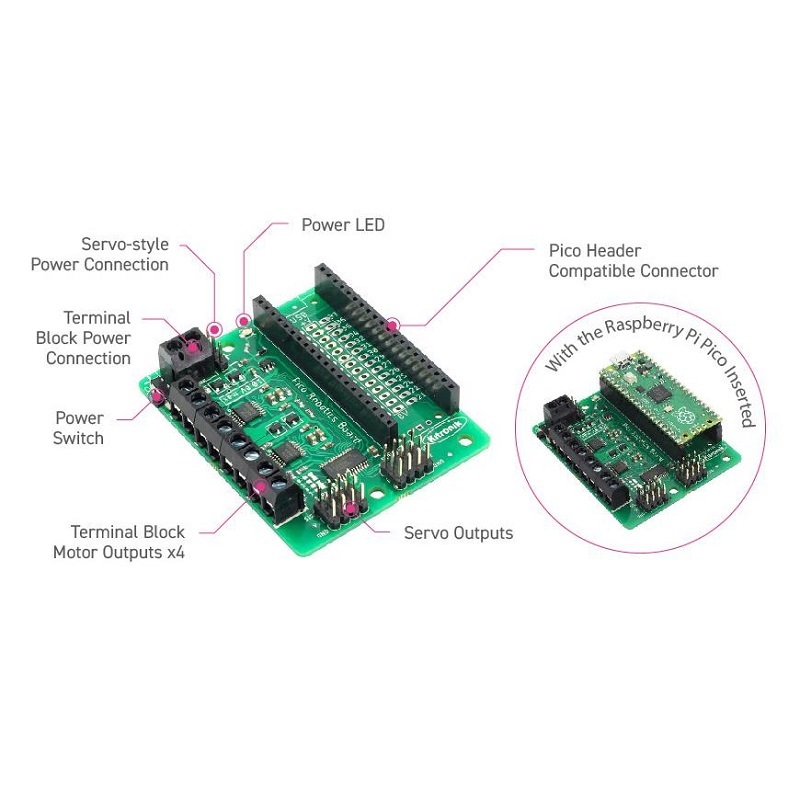

This Compact Robotics Board enables the Raspberry Pi Pico (connected via pin header) to drive 4 motors (or 2 stepper motors) and 8 servos. It also features 27 other I/O expansion points and Power and Ground connections.

The Robotics Board features 2 Dual H Bridge Motor Driver ICs. These are capable of driving 2 standard motors or 1 stepper motor each, with full forward, reverse, and stop control. There are also 8 servo outputs, capable of driving standard and continuous rotation servos. They can all be controlled by the Pico using the I2C protocol, via a 16 channel driver IC. The IO break out provides connections to all the unused pins on the Pico. The 27 available I/O pins allow other devices, such as sensors or ZIP LEDs, to be added to the board.

Power is provided via either a terminal block or servo style connector. The supply is then controlled by an on/off power switch to the board and there is also a green LED to indicate when the board has power. The board then produces a regulated 3.3V supply which is fed into the 3V and GND connections to power the connected Pico. This removes the need to power the Pico separately. The 3V and GND pins are also broken out on the header, which means external devices can also be powered.

To use the robotics board, the Pico should be firmly inserted into the dual row pin socket on the board. Ensure the Pico is inserted with the USB connector at the same end as the power connectors on the robotics board. This will allow access to all of the board functions and each pin broken out.


【產品特色】

  • A compact yet feature-packed board designed to sit at the heart of your Raspberry Pi Pico robotics projects.
  • The board can drive 4 motors (or 2 stepper motors) and 8 servos, with full forward, reverse, and stop control.
  • It also features 27 other I/O expansion points and Power and Ground connections.
  • The I2C communication lines are also broken out allowing other I2C compatible devices to be controlled.
  • This board also features an on/off switch and power status LED.
  • Power the board via either a terminal block or servo style connector.
  • The 3V and GND pins are also broken out on the Link header, allowing external devices to be powered.
  • Code it with MicroPython or via an editor such as the Thonny editor.

【產品規格】

  • Length: 68mm.
  • Width: 56mm.
  • Height: 10mm.
  • PCB Thickness: 1.6mm
