樹莓派CM4雙網路孔擴展板

樹莓派CM4雙網路孔擴展板

貨號:CCE0039


NT$1,720
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量
加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。
加入追蹤清單
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

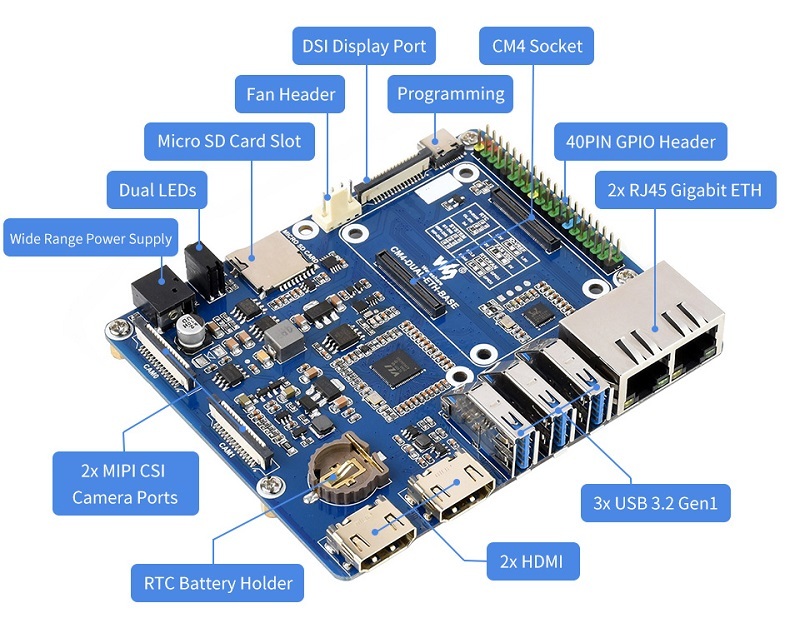

CM4-DUAL-ETH-BASE is a base board that can be used with Raspberry Pi Compute Module 4, and supports 7~12V DC power supply, onboard three USB3.2, dual Gigabit Ethernet ports.


Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header.Suitable For Compute Module 4 Lite/EMMC Series Module.


Providing Interfaces Including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB.


【產品規格】
  • CM4 SOCKET:suitable for all variants of Compute Module 4
  • ETHERNET:Dual Gigabit Ethernet RJ45
  • USB:USB 3.2 Gen1 × 3
  • PIN HEADER:40PIN GPIO header × 1
  • HDMI:HDMI × 2, supports 4K 30fps output
  • DSI DISPLAY:MIPI DSI display port × 1, 15pin 1.0mm FPC connector
  • CSI CAMERA:MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
  • POWER INPUT :7V-36V
  • FAN:5V/12V, allows speed adjustment and measurement
  • RTC:Real-time clock with battery socket and ability to wake Compute Module 4
  • SD CARD SLOT:MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

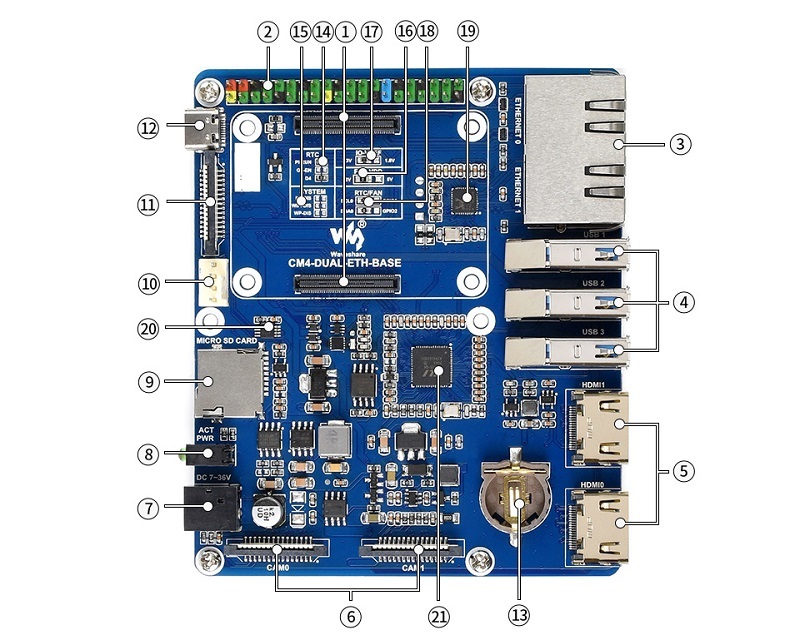

  1. CM4 socket:suitable for all variants of Compute Module 4
  2. 40PIN GPIO header:for connecting sorts of HATs
  3. RJ45 Gigabit Ethernet
  • dual RJ45 Gigabit Ethernet, 10/100/1000M compatible
  • ETHERNET 0: CM4 original ETH
  • ETHERNET 1: USB extended ETH
  • USB 3.2 ports:3x USB 3.2 Gen1, for connecting sorts of USB devices
  • HDMI connectors:2x HDMI, supports 4K 30fps output
  • CAM:2x MIPI CSI camera ports
  • DC power supply:7~36V DC wide voltage range power input
  • Dual LED indicators:
    • red: Raspberry Pi power indicator
    • green: Raspberry Pi operating status indicator
  • Micro SD card slot:for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
  • FAN header:for connecting cooling fan, allows speed adjustment and measurement
  • DISP0:MIPI DSI display port
  • USB SLAVE port:for burning system image into Compute Module 4 eMMC variants
  • RTC battery holder:supports CR1220 button cell
  • RTC interruption configuration:
    • PI-RUN: CM4 will reboot on RTC interruption
    • GN-EN: CM4 powerdown on RTC interruption
    • D4: D4 pin is triggered on RTC interruption
  • IO-VREF selection:set the CM4 IO logic level as 3.3V or 1.8V
  • FAN power supply selection:select 5V or 12V power to drive the fan
  • System function configuration
    • BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY
    • WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
    • WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
  • RTC/FAN I2C bus selection:
    • SDA0/SCL0: I2C-10 is shared with CSI/DSI
    • GPIO3/2: I2C-1 is shared with 40PIN header
  • RTL8153:USB Gigabit Ethernet chip
  • EMC2301:fan controller, allows fan speed adjustment and measurement
  • VL805:USB 3.0 HUB
