NodeMcu Lua WIFI V3 ESP8266 串口wifi模組

NodeMcu Lua WIFI V3 ESP8266 串口wifi模組

貨號:CEE0007


NT$100
數量
商品預購中
加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完
商品描述
了解更多
送貨及付款方式
顧客評價
【商品簡介】

升級版本來啦!ESP8266 全IO口引出,直接下載無需複位!
開發 ESP8266 的絕佳全套工具! 更重要是所有軟硬件全開源!


【產品規格】
  • Uses CH340G instead of CP2102.
  • NodeMCU has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
  • Communication interface voltage: 3.3V.
  • Antenna type: Built-in PCB antenna is available.
  • Wireless 802.11 b/g/n standard
  • WiFi at 2.4GHz, support WPA / WPA2 security mode
  • Support STA/AP/STA + AP three operating modes
  • Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)

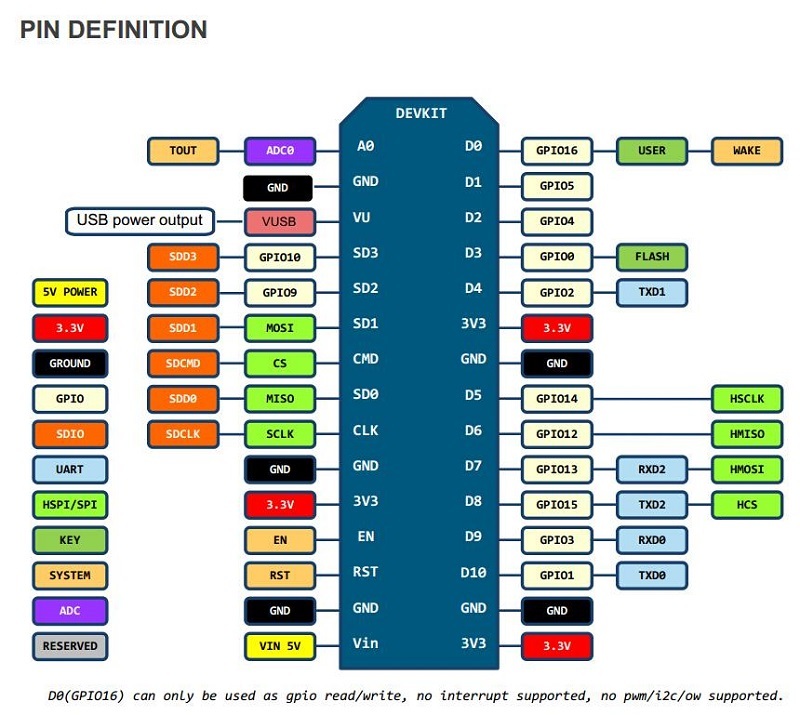

  • D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
  • AD0: 1 channel ADC
  • Power input: 4.5V ~ 9V (10VMAX), USB-powered
  • Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
  • Transfer rate: 110-460800bps
  • Support UART / GPIO data communication interface
  • Remote firmware upgrade (OTA)
  • Support Smart Link Smart Networking
  • Working temperature: -40 ℃ ~ + 125 ℃
  • Drive Type: Dual high-power H-bridge driver
  • ESP8266 has IO Pin
  • Don't need to download resetting
  • A great set of tools to develop ESP8266
  • Flash size: 4MByte


  • 【文件下載】
