Pololu Simple 高功率馬達控制器 18v15

貨號：MOM0041

NT$1,575

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

了解更多

送貨及付款方式

顧客評價

【產品簡介】

此控制器具有高達5.5-40V的寬工作電壓範圍，能夠以小巧的外形提供高達數百瓦的功率，適用於許多馬達控制應用。具有多種支援的接口 - 用於直接連接到計算機的USB、用於嵌入式系統的TTL串行、用作RC控制的電子速度控制（ESC）的RC愛好伺服脈衝，以及用於電位計的模擬電壓或模擬操縱桿和各種可配置設置，這些馬達控制器可以輕鬆地將直流馬達的基本控制添加到各種項目中。

【產品規格】

Simple bidirectional control of one DC brush motor.
5.5 V to 30 V (18v7, 18v15, and 18v25) or 40 V (24v12 and 24v23) operating supply range.
7 A to 25 A maximum continuous current output without a heat sink, depending on controller model

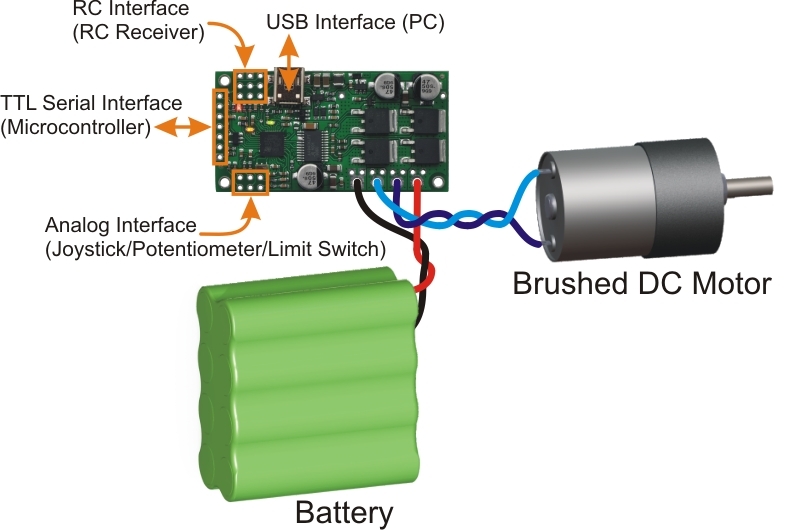

Four communication or control options:

USB interface for direct connection to a PC.
Logic-level (TTL) serial interface for direct connection to microcontrollers or other embedded controllers.
Hobby radio control (RC) pulse width interface for direct connection to an RC receiver or RC servo controller.
0–3.3 V analog voltage interface for direct connection to potentiometers and analog joysticks.

使用適用於Windows的免費配置程序通過USB進行簡單配置和校準。

Dimensions

Size:	2.1" x 1.1" x 0.5"
Weight:	14 g

General specifications

Motor channels:	1
Control interface:	USB; non-inverted TTL serial; RC servo pulses; analog voltage1
Minimum operating voltage:	5.5 V
Maximum operating voltage:	30 V
Continuous output current per channel:	15 A2
Maximum PWM frequency:	21.77 kHz
Maximum logic voltage:	3.3 V3
Reverse voltage protection?:	N
Partial kit?:	N
