蝦米擴展板(相容於BBC micro:bit V2)

蝦米擴展板(相容於BBC micro:bit V2)

貨號:CCE0036


NT$1,125
{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}
{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}
數量 組合數量
加入追蹤清單
一次最大商品購買數量限制為 99999
該數量不適用,請填入有效的數量。
售完

商品存貨不足,未能加入購物車

您所填寫的商品數量超過庫存

每筆訂單限購 {{ product.max_order_quantity }} 件

現庫存只剩下 {{ quantityOfStock }} 件

若想購買,請聯絡我們。
加入追蹤清單
商品描述
了解更多
送貨及付款方式
顧客評價
【產品簡介】

此擴展板只適用於micro:bit V2

這是一款micro:bit V2的教育多功能擴充板。57*87mm的小尺寸,精巧設計,擴充了各類感測器、4路馬達、LED、OLED顯示、外接電源等10多個功能模組,讓學生在學習micro:bit 基本功能的同時還進一步提升到了一個新的水準,如控制自走小車、麥克納姆輪車等。此外,即使板上內建了這麼多東西,還是維持低價,物美價廉。快來探索這些額外的功能吧!

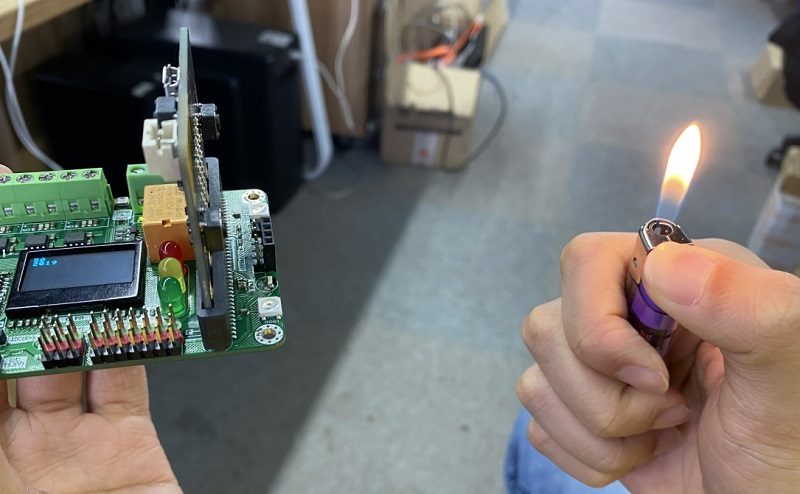

▼ 火焰感測範例

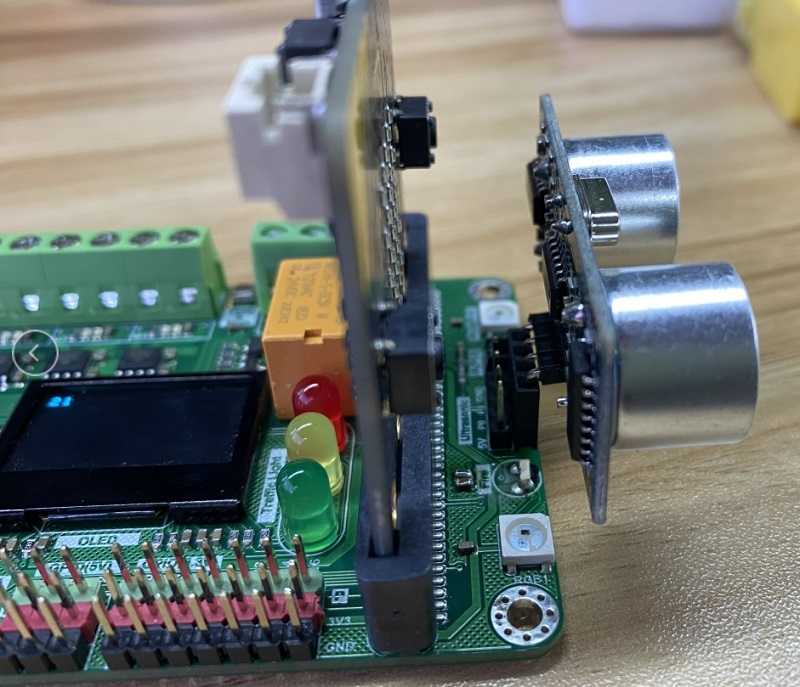

▼ 超音波測距範例




Look for more hardware to play with your new micro:bit? Check this out! This is a micro:bit V2-based multi-functional expansion board for programming education.

Featuring a small size of 57*87mm and a compact layout, the board expands more than 10 functional modules including sensors of all kinds, 4-way motor, LED lights, OLED screen, and external power supply, which allows students to not only learn the basic functions of micro:bit but also further advance to the next level like controlling robot cars, Mecanum wheel robot, and so on. Moreover, even with so many things integrated on the board, the price still remains low. Come and explore all these extra features

This Expansion Board only compatible with micro:bit V2, not compatible with micro:bit V1 board.


【產品特色】

  • 板載 10 多個模組,適用於 STEAM 教育。
  • 適用於麥克納姆輪機器人教學和競賽。

  • Highly integrated, over 10 modules onboard for STEAM education.
  • Suitable for being applied to Mecanum wheel robot teaching and contest.
  • Affordable for every student

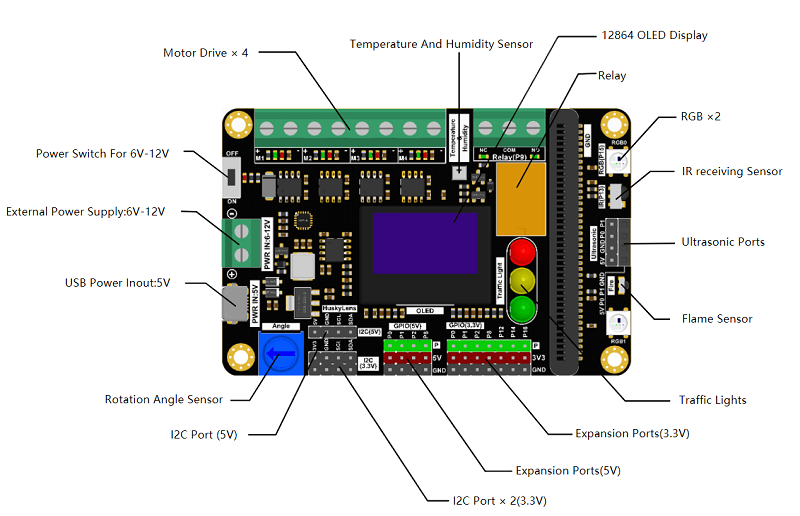

【產品規格】

  • Operating Voltage: 5V(USB)
  • External Power Supply: 6V~12V (The switch only controls the external power)
  • Relay Module (P9) ×1 (On-board status indicator )
  • Infrared Receiver (P13) ×1
  • W2812RGB Light (P15) ×2 (RGB0 RGB1)
  • Infrared Flame Sensor (I2C) ×1
  • Temperature & Humidity Sensor (I2C) ×1
  • Rotation Angle Sensor (I2C) ×1
  • Red/Yellow/Green Traffic Light Module (I2C) ×1
  • 12864_OLED Display (I2C) ×1 (With black metal protective cover)
  • Motor Drive (I2C)×4 (Onboard forward/backward rotation two-color indicator)
  • GPIO(5V): P0 P1 P2 P8 (External power with the stronger driving capability)
  • GPIO(3.3V): P0 P1 P2 P8 P12 P14 P16 (Inner power of micro:bit main-board)
  • I2C Expansion Port (3.3V) ×2
  • HuskyLens Port (5V I2C ) ×1 (External power with stronger drive capability)
  • SR04 Ultrasonic Sensor Port ×1 (5V P0 P1 GND)
  • URM10 Ultrasonic Sensor Port ×1 (5V P0 P1 GND)
  • Dimensions: 57*87 mm/2.24*3.43”





【文件下載】


這個商品沒有更多資訊。

送貨方式

  • 面交自取
  • 郵寄掛號 (未滿一千元須加運費60元)
  • 順豐速運 (運費100元)
  • 7-11 取貨付款 (運費60元)
  • 7-11 純取貨 (運費60元)
  • 全家 取貨付款 (運費60元)
  • 全家 純取貨 (運費60元)

付款方式

  • 面交付款
  • 信用卡(金額需要滿三千元才能使用)
  • 銀行轉帳/ATM(請於7日內匯款完成,才會更新訂單狀態)
  • 全家 C2C 取貨付款
  • 7-11取貨付款
